86 Series Locking Board Support Set
86 Series Locking Board Support Set
SKU:01C-03c6d0
Secure and reliable 86 Series Locking Board Support Set for circuit boards. RoHS compliant, durable Nylon material, and metric spacing for stability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
86 Series Locking Board Support Set
$29.99
Quantity: 1
Claim Your Seller Account
86 Series Locking Board Support Set
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 86 Series Locking Board Support Set is designed for optimal support of circuit boards with .063 PCB thickness and .063-.078 chassis thickness. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), these board supports are RoHS compliant and offer a temperature range of -40 to 185°F. With a metric spacing length of .552 inches (14 mm), these supports ensure secure installation and stability on various chassis types. The natural color blends seamlessly with most electronic configurations, and each set includes 1000 supports in a convenient bag packaging. Ensure precision and reliability in your PCB installations with the 86 Series Locking Board Support Set.
Product Specifications

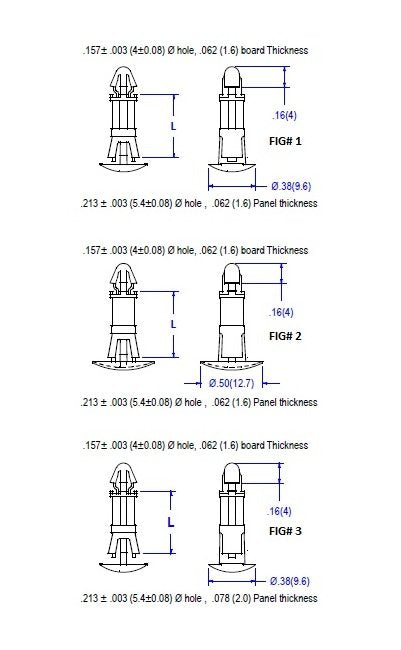

Specifications Fig
2
Specifications L 015
.552 (14) inches (mm)
