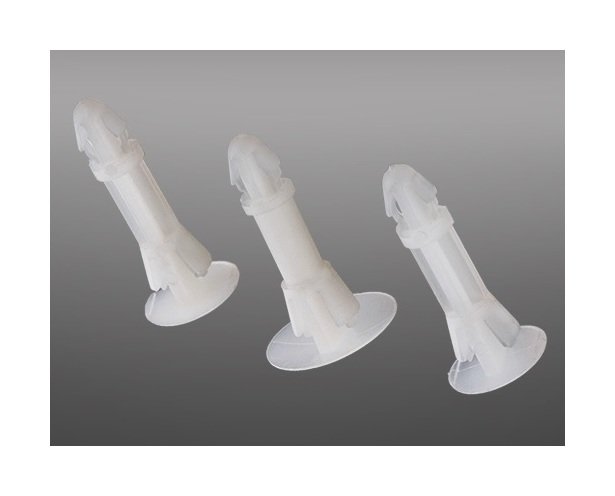

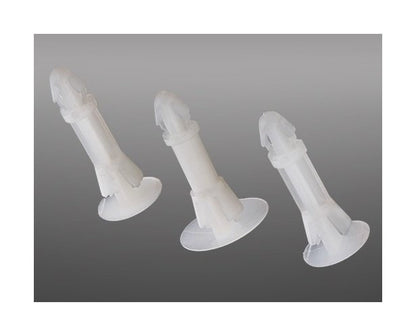

86 Series Nylon PCB Support
86 Series Nylon PCB Support
SKU:01C-344ca3
Durable 86 Series Nylon PCB Support for .157 Board Hole x .213 Chassis Hole. RoHS compliant, Nylon 66 material, ASTM D 4066 PA111 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
86 Series Nylon PCB Support
$29.99
Quantity: 1
Claim Your Seller Account
86 Series Nylon PCB Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 86 Series Nylon PCB Support is a reliable solution for your circuit board mounting needs. Designed for .157 Board Hole x .213 Chassis Hole specifications, this reverse locking board support offers precise support with dimensions suitable for PCB Thickness of .063 inches and Chassis Thickness ranging from .063-.078 inches. Crafted from Nylon 66 UL94V-2 material (UL94V-0 option available), this support is RoHS compliant and meets ASTM D 4066 PA111 standards. With a temperature range of -40 to 185°F, it ensures durability and reliability in various environments.

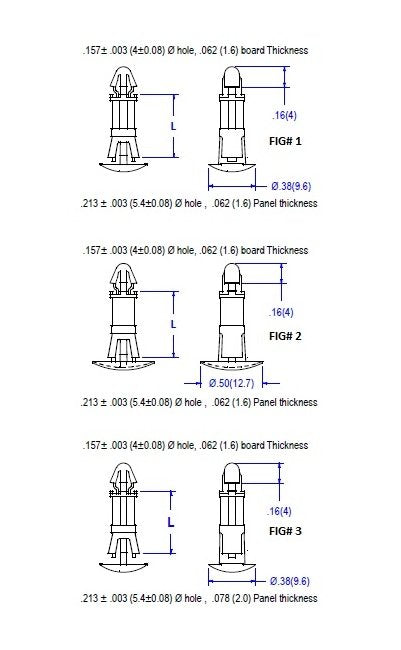

Product Specifications
Specifications Fig
1
Specifications L 015
.552 (14) inches (mm)
