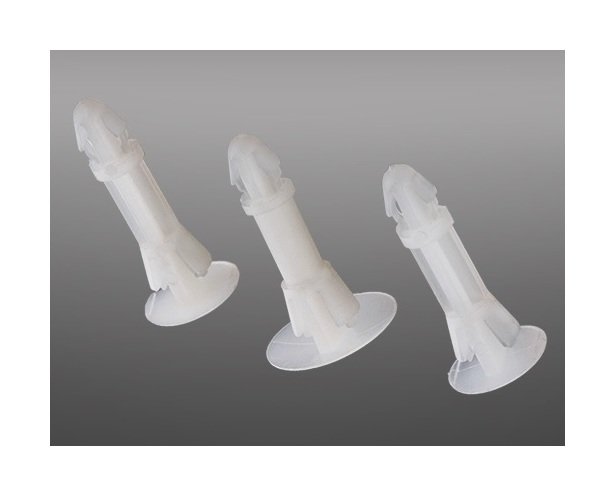

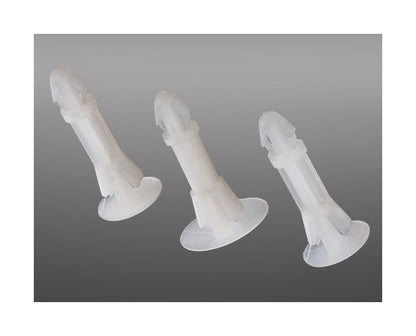

86 Series Reverse Locking PCB Support
86 Series Reverse Locking PCB Support
SKU:01C-834807
Get stable and secure mounting with 86 Series Reverse Locking PCB Supports. RoHS compliant, durable Nylon 66 material, ideal for precise circuit board mounting.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
86 Series Reverse Locking PCB Support
$29.99
Quantity: 1
Claim Your Seller Account
86 Series Reverse Locking PCB Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 86 Series Reverse Locking PCB Support is designed for optimal stability and secure mounting of circuit boards. With a .063 PCB thickness and .063-.078 chassis thickness, this support ensures a precise fit. It is made of Nylon 66 UL94V-2 material (UL94V-0 available) and is RoHS compliant, offering durability and safety. These supports feature a metric spacing length of .393 (10) inches and can withstand a temperature range of -40 to 185 F (-40 to 85 C). Ideal for industrial applications requiring reliable board support with precise dimensions and material quality.
Product Specifications

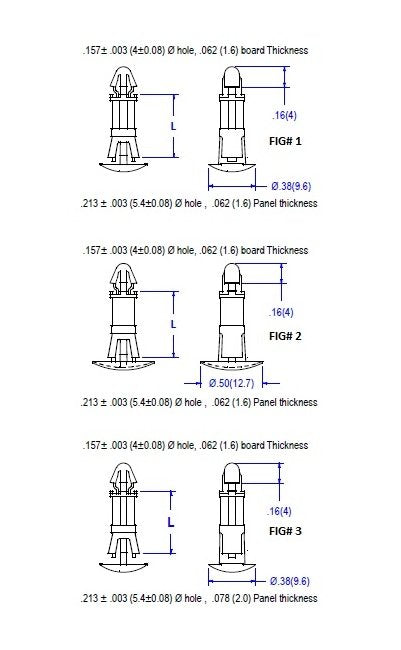

Specifications Fig
1
Specifications L 015
.393 (10) inches (mm)
