86 Series Reverse Locking PCB Support
86 Series Reverse Locking PCB Support
SKU:01C-c8edee
Securely mount circuit boards with our 86 Series Reverse Locking PCB Support featuring precision .157 Board Hole x .213 Chassis Hole. RoHS compliant and ideal for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
86 Series Reverse Locking PCB Support
$29.99
Quantity: 1
Claim Your Seller Account
86 Series Reverse Locking PCB Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

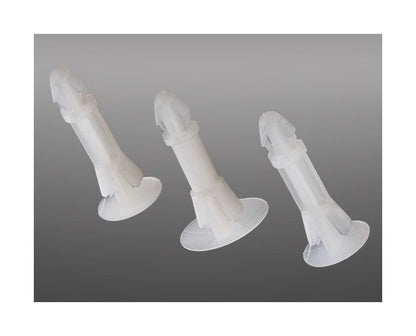

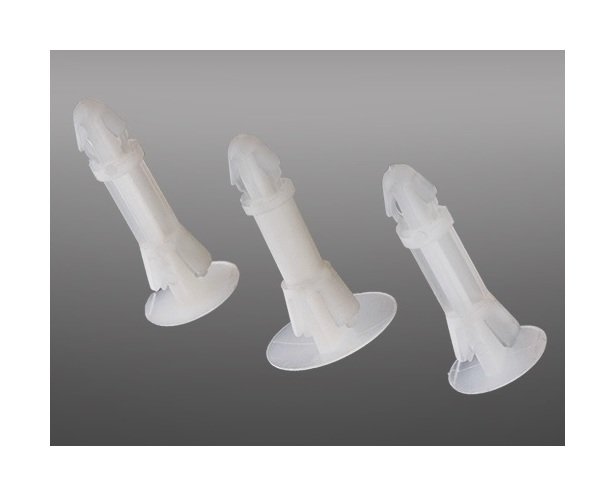

The 86 Series Reverse Locking PCB Support is designed for secure mounting of circuit boards with a .063 PCB Thickness and .063-.078 Chassis Thickness. Made of Nylon 66 UL94V-2 material, this support offers reliable performance in a temperature range of -40 to 185 F. Each support features a .157 Board Hole and a .213 Chassis Hole, ensuring a precise fit for various applications. Compliant with RoHS regulations and ASTM D 4066 PA111 standards, this support is a dependable choice for demanding environments.
Product Specifications

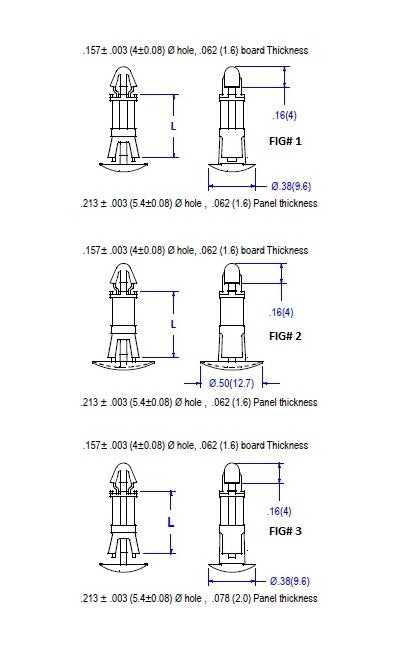

Specifications Fig
3
Specifications L 015
.552 (14) inches (mm)
