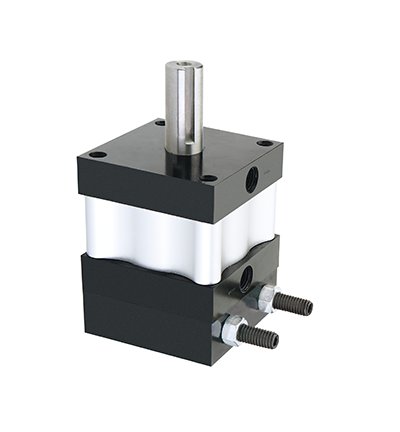

87 Inch-Pound Rotary Vane Actuator
87 Inch-Pound Rotary Vane Actuator
SKU:ROT-bbc8d5
Enhance precision and control with the 87 Inch-Pound Rotary Vane Actuator, featuring 180-degree rotation and 87 in·lb maximum torque. Ideal for hydraulic or pneumatic systems.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
87 Inch-Pound Rotary Vane Actuator
$499.99
Quantity: 1
Claim Your Seller Account
87 Inch-Pound Rotary Vane Actuator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 87 Inch-Pound Rotary Vane Actuator by Compact Automation Products offers a 180-degree rotation angle with precise positioning options. With a maximum torque of 87 in·lb and patented urethane seals for durability, it ensures zero backlash, continuous full torque, and long cycle life. This actuator is designed for optimal performance in hydraulic or pneumatic systems, providing reliability and repeatability in institutional applications.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
2.9 in
Specifications Maximum Torque
87 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
180 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
