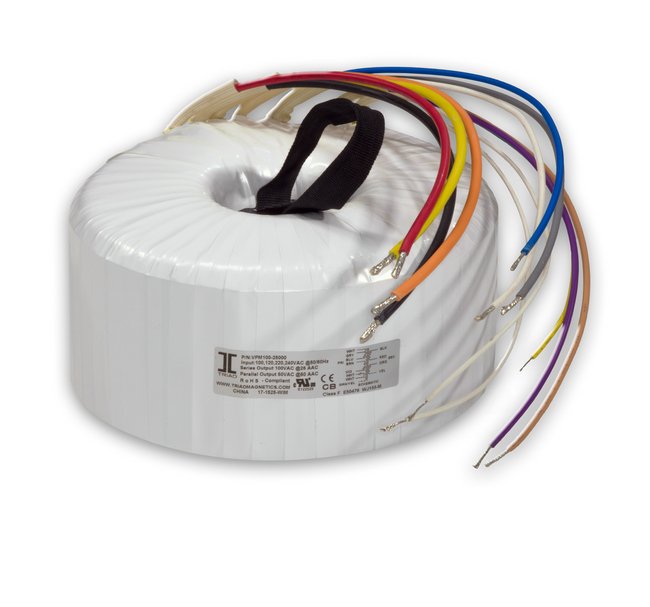

8750 V·A Toroidal Medical Transformer

8750 V·A Toroidal Medical Transformer

SKU:POW-3b9cf8

Reliable 8750 V·A medical transformer with dual secondary connections for parallel or series configurations, Class F insulation, and industry compliance.

Regular price $1,299.99
Regular price Sale price $1,299.99
Sale

Initiate Order

8750 V·A Toroidal Medical Transformer

8750 V·A Toroidal Medical Transformer

$1,299.99

Quantity: 1

Claim Your Seller Account

8750 V·A Toroidal Medical Transformer

8750 V·A Toroidal Medical Transformer

$1,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 8750 V·A Power VPM Series Toroidal Medical Transformer is a reliable power solution designed for medical applications. With primary voltage options of 208V or 240V and dual secondary connections for parallel or series configurations, this transformer offers flexibility and efficiency. It boasts Class F insulation, dielectric isolation of 4KV for 60 sec, and low leakage currents, ensuring safe and stable power delivery. Meeting industry standards like CE and CRU®US, this transformer is ideal for medical facilities seeking high-quality power solutions.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
8750 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
140 mm
Specifications Nominal Primary Voltage
208 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
335 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
8750 V·A
Specifications Secondary Voltage In Parallel
120 V at 72.80 A
Specifications Secondary Voltage In Series
240 V CT at 36.40 A
Specifications Regulation
0.9 %
Specifications Temperature Rise
45 ºC
Specifications Weight
74 kg
