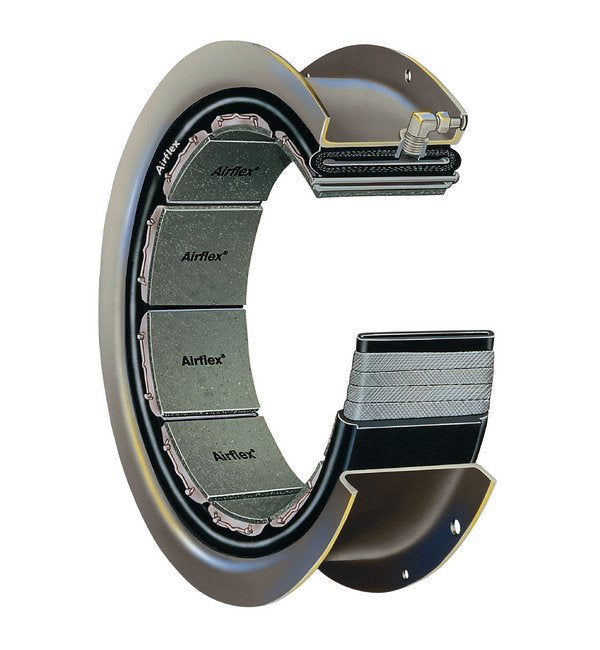

• 8CB250 Single Flange CB Element - Image 1
  • 8CB250 Single Flange CB Element - Image 2
1 2
Clutch Engineering →

8CB250 Single Flange CB Element

8CB250 Single Flange CB Element

CLU-cd3f4e

High-performance 8CB250 Single Flange CB Element for precise torque transmission in industrial applications.

$699.99
$699.99
Sale

Initiate Order

8CB250 Single Flange CB Element

8CB250 Single Flange CB Element

$699.99

Quantity: 1

Claim Your Seller Account

8CB250 Single Flange CB Element

8CB250 Single Flange CB Element

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 8CB250 Single Flange CB Element is a high-performance component designed for precise torque transmission in industrial applications. With a torque rating of 4290 lb·in | 485 Nm and a maximum speed of 1800 rpm, this element ensures reliable and efficient operation. Its durable construction, including a friction area of 61 in² and high-quality materials, enhances longevity and performance. Additionally, this element meets stringent industry standards, making it ideal for institutional and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified. For example 142096JA, 142096JB, 142096JC, 142096JG
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
30 in³ | 0.49 dm³
Specifications Angle Q
22.500 º
Specifications Bolt Hole Size L
0.38 in | 10 mm
Specifications Centrifugal Loss Constant Cs
0.48 E-06 bar/rpm2 | 7.0 E-06 psi/rpm2

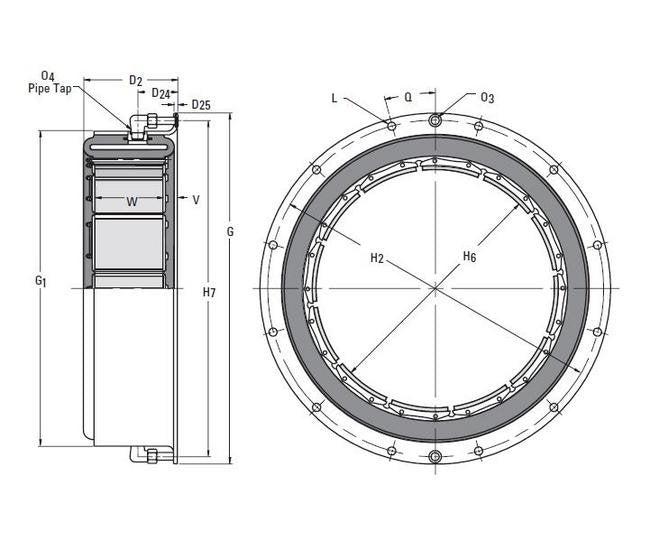

Specifications Dimension D2
3.44 in | 87 mm
Specifications Dimension D24
1.91 in | 48 mm
Specifications Dimension D25
0.09 in | 2 mm
Specifications Dimension G
12.875 in | 327 mm
Specifications Dimension G1
11.19 in | 284 mm
Specifications Dimension H2
12.125 in | 308 mm
Specifications Dimension H6
8.16 in | 207 mm
Specifications Dimension H7
12.13 in | 308 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.56 in | 14 mm
Specifications Friction Area
61 in² | 393.5 cm²
Specifications Friction Shoe Width W
2.50 in | 64 mm
Specifications Inertia
2.0 lb·ft² | 0.08 kg·m²
Specifications Manufacturer
Airflex
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
7.90 in | 201 mm
Specifications New Friction Lining Thickness
0.12 in | 3 mm
Specifications Number Of Friction Shoes
8
Specifications Number Of Mounting Holes
8
Specifications Size
8CB250
Specifications Torque Rating 75 Psi55 Bar
4290 lb·in | 485 Nm
Specifications Weight
9 lb | 4.1 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
