8mm Diamond Coated 4-Flute Corner Radius End Mill

8mm Diamond Coated 4-Flute Corner Radius End Mill

DIA-b3fba1

Achieve unrivaled cutting performance and durability with the 8mm Diamond Coated 4-Flute Corner Radius End Mill from IDI.

$79.99
$79.99
Sale

Initiate Order

8mm Diamond Coated 4-Flute Corner Radius End Mill

8mm Diamond Coated 4-Flute Corner Radius End Mill

$79.99

Quantity: 1

Claim Your Seller Account

8mm Diamond Coated 4-Flute Corner Radius End Mill

8mm Diamond Coated 4-Flute Corner Radius End Mill

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience top cutting performance and exceptional tool longevity with the 8mm Diamond Coated 4-Flute Corner Radius End Mill from IDI. Utilizing a specially sintered substrate, advanced tool geometry, and premium diamond coating, this end mill offers unparalleled durability, outlasting uncoated tools by 12-20 times. Rigorously inspected with Zoller Measuring Machine and Mitutoyo Laser Scan Meter to ensure precision, every tool undergoes thorough microscopic examination for perfection. Ideal for graphite milling in semiconductor and die mold industries, as well as composite materials like CFRP and ceramics. Enhance productivity and precision with this high-performance end mill.

Product Specifications

Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

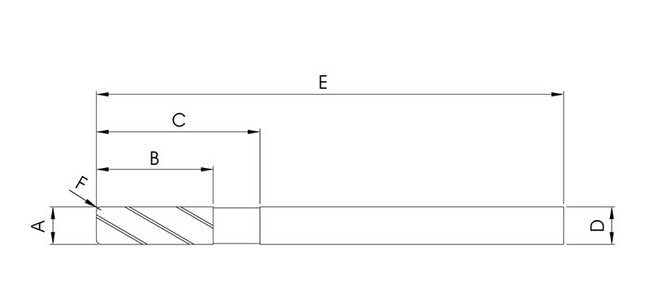

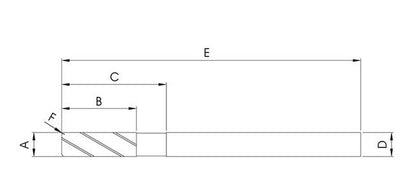

Specifications Corner Radius F
0.5 mm
Specifications Cutting Diameter A
8 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
8 mm
