8mm Tube Female Connector Fitting with 3/8" Thread
8mm Tube Female Connector Fitting with 3/8" Thread
SKU:SFC-1ab348
Connect metric tubes to ISO threads securely with the SFCI Series 8mm Tube Female Connector Fitting.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
8mm Tube Female Connector Fitting with 3/8" Thread
$24.99
Quantity: 1
Claim Your Seller Account
8mm Tube Female Connector Fitting with 3/8" Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

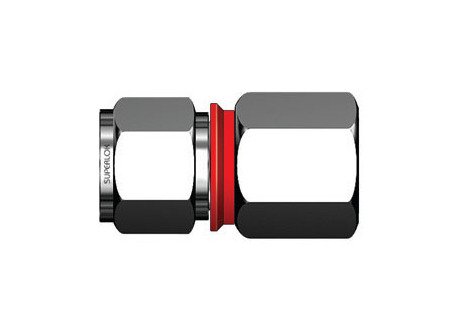

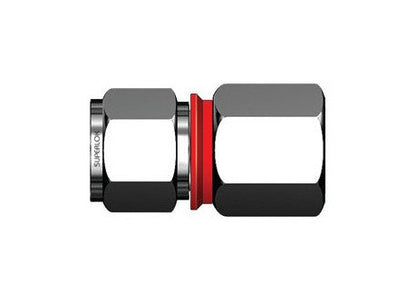

The SFCI Series 8mm Tube Female Connector Fitting with 3/8" Thread is designed to connect metric tubes to male ISO threads with precision and reliability. Made from high-quality materials such as Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and resistance to various environments. Featuring i-Fitting® components for safety, productivity, and cost-efficiency, this patented design enhances installer safety in high-pressure and chemical settings.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

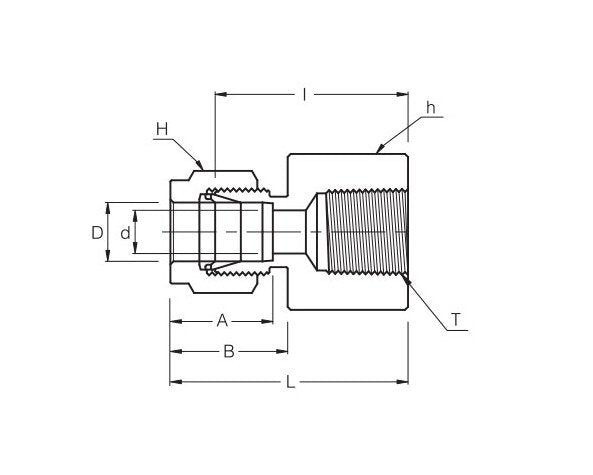

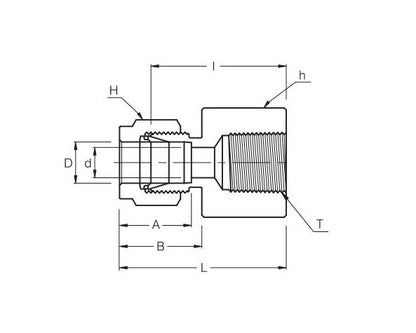

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
31.0 mm
Technical Specs Dimension L
38.5 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
