8mm Tube to 1/2" Female Connector Fitting - SFCI Series

Name: 8mm Tube to 1/2" Female Connector Fitting - SFCI Series
Brand: Superlok-Mako Products LLC
SKU: SFC-c6aeec
Price: 24.99 USD
Availability: OutOfStock

SKU:SFC-c6aeec

Enhance connections with precision and safety using the SFCI Series 8mm Tube to 1/2" Female Connector Fitting. Patented i-Fitting® design ensures reliability and safety in demanding environments.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

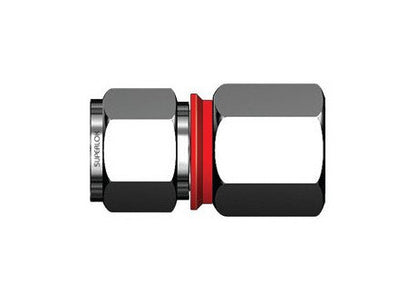

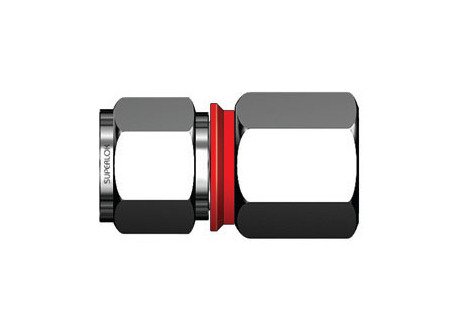

The SFCI Series 8mm Tube to 1/2" Female Connector Fitting is a high-quality component that efficiently connects metric tubes to male ISO threads. Crafted from a range of durable materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures reliability and longevity. Its innovative i-Fitting® design enhances safety by preventing over-tightening, making it ideal for high-pressure and hazardous chemical environments. With dimensions designed for precise compression and compatibility with various valve connections, this patented connector fitting enhances productivity, reduces costs, and sets industry standards.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

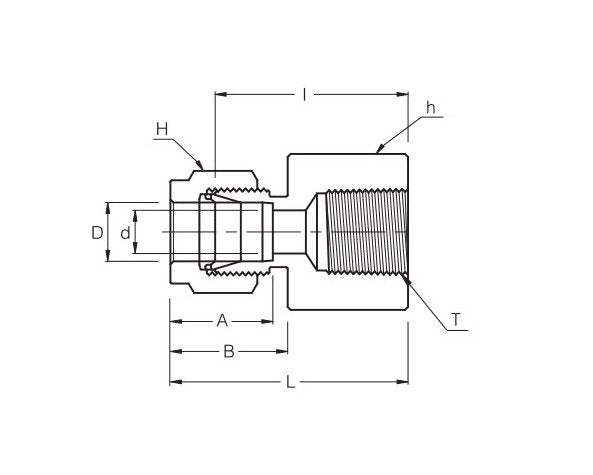

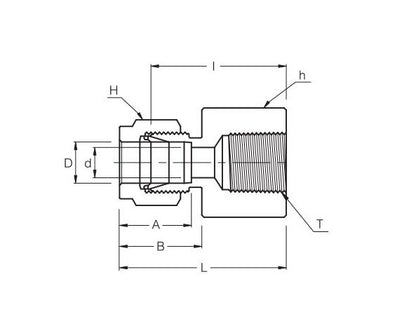

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

16.2 mm

Technical Specs Dimension B

18.6 mm

Technical Specs Dimension I

35.8 mm

Technical Specs Dimension L

43.3 mm

Technical Specs Material

Technical Specs Minimum Dimension D

6.4 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Thread Size T

1/2 in

Technical Specs Thread Type

Pipe Thread (PT)

Technical Specs Tube Outside Diameter D

8 mm

Technical Specs Width Across Flat H

16 mm
