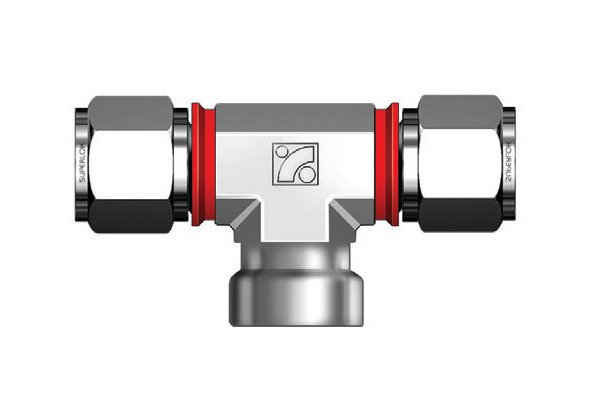

8mm Tube to 1/2" Thread Female Branch Tee Fitting
8mm Tube to 1/2" Thread Female Branch Tee Fitting
SKU:SFB-ffabdc
Premium quality 8mm Tube to 1/2" Thread Female Branch Tee Fitting for secure metric tube connections. Enhances safety, productivity, and cost-efficiency.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
8mm Tube to 1/2" Thread Female Branch Tee Fitting
$34.99
Quantity: 1
Claim Your Seller Account
8mm Tube to 1/2" Thread Female Branch Tee Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFBTI Series 8mm Tube to 1/2" Thread Female Branch Tee Fitting is designed to seamlessly connect metric tubes to male ISO tapered threads. Constructed from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliable performance. With i-Fitting® components, including a built-in check ring for perfect compression, this fitting enhances installer safety, productivity, and cost-efficiency. Ideal for high-pressure and chemical environments, this industry-changing design by BMT is a must-have for applications requiring precision and reliability.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

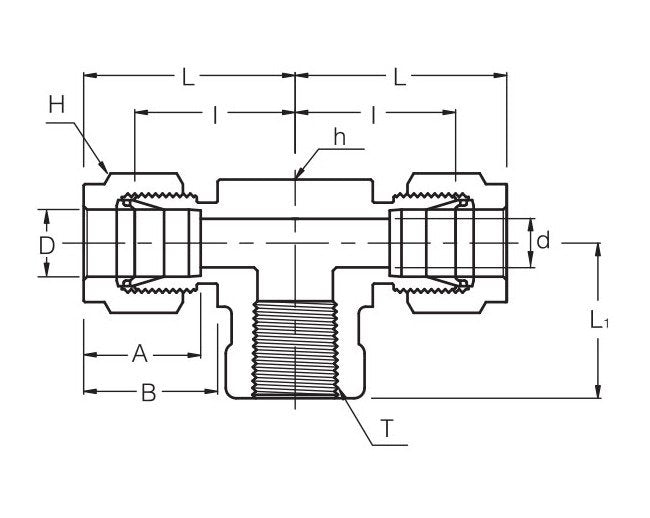

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
28.0 mm
Technical Specs Dimension L
35.2 mm
Technical Specs Dimension L1
28.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
