8mm Tube Union Cross Fitting - SUCI Series
8mm Tube Union Cross Fitting - SUCI Series
SKU:SUC-ebf9d8
Precision-engineered 8mm Tube Union Cross Fitting for secure metric tube connections. i-Fitting® design ensures safety, productivity, and cost savings.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
8mm Tube Union Cross Fitting - SUCI Series
$34.99
Quantity: 1
Claim Your Seller Account
8mm Tube Union Cross Fitting - SUCI Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

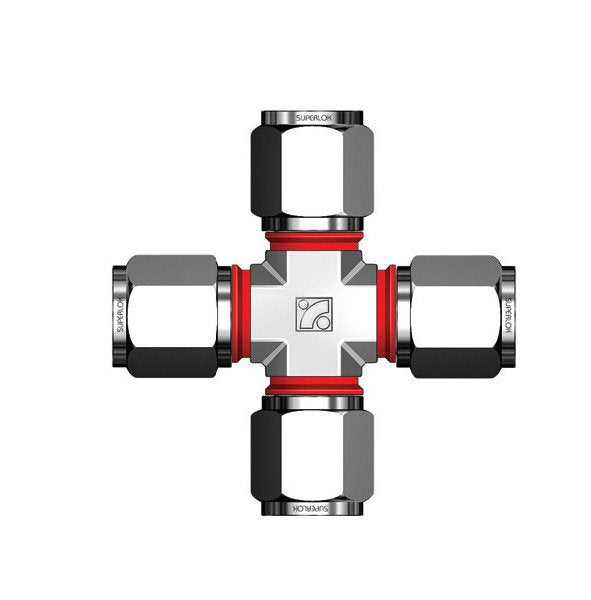

The 8mm Tube Union Cross Fitting from the SUCI Series is designed to connect metric tubes with precision and reliability. Crafted from a range of robust materials including Alloy 625, Stainless Steel, and more, this fitting ensures durability in high-pressure and hazardous environments. Its innovative i-Fitting® design features a built-in gap gauge for perfect compression, enhancing installer safety, productivity, and cost-efficiency. Ideal for valve connections, this industry-changing fitting offers superior performance in diverse applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

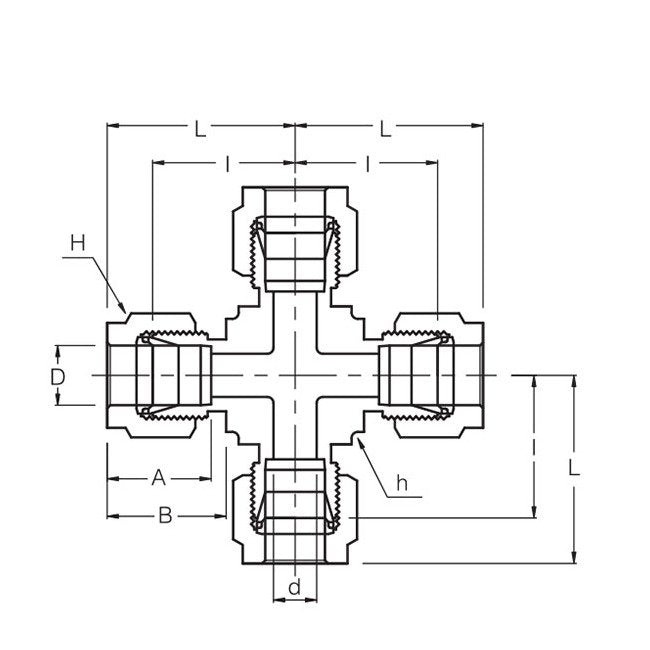

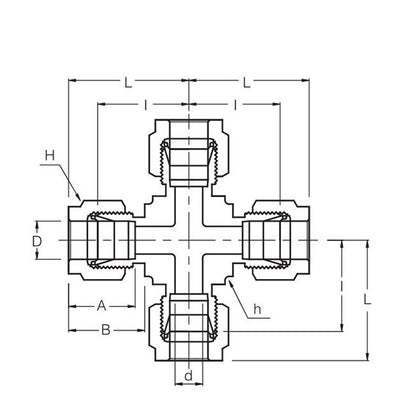

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
22.4 mm
Technical Specs Dimension L
29.9 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
