9.30mm Carbide Hole Rod UM10 Grade
9.30mm Carbide Hole Rod UM10 Grade
SKU:SOL-5c4941
Premium 9.30mm Carbide Hole Rod for precision machining with tight tolerances and efficient coolant dispersion.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
9.30mm Carbide Hole Rod UM10 Grade
$59.99
Quantity: 1
Claim Your Seller Account
9.30mm Carbide Hole Rod UM10 Grade
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

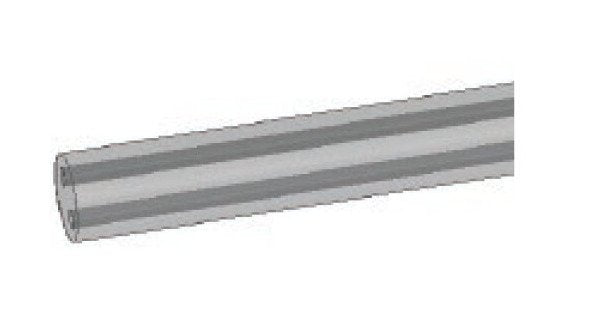

The 9.30mm Diameter UM10 Grade Carbide Hole Rod is a premium unground standard rod designed for precision machining applications. Featuring a 4.0mm Between Centers (BC) Diameter with tight tolerances, this rod offers high performance and durability. The rod's 1.40mm Hole d is perfect for coolant applications, ensuring efficient heat dissipation. Crafted from high-quality Carbide material, this rod is reliable and long-lasting, meeting the rigorous requirements of industrial and institutional use.
Product Specifications

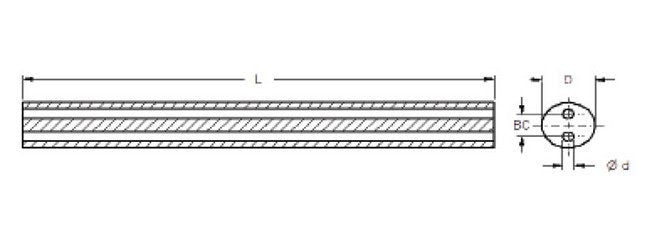

Classifications Between Centers Bc Diameter
4.0 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
9.30 mm
Classifications Diameter Tolerance
+0.3 mm | 0.5 mm
Classifications Finish
Unground
Classifications Hole D
1.40 mm
Classifications Hole D Tolerance
0.15 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
0.343108389 Kilogram
