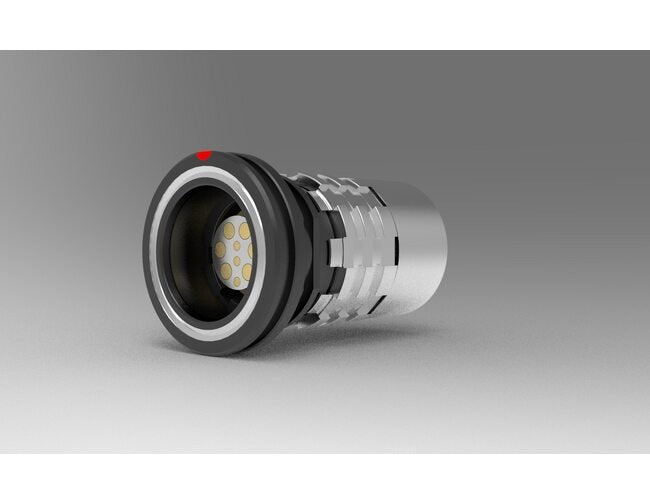

9 Point Contact In-Line Receptacle Ranger Connector
9 Point Contact In-Line Receptacle Ranger Connector
SKU:RAN-f2acd5
Reliable 9 Point Ranger Connector for military and commercial applications, IP6K8/9K protection, USB 2.0 compatible
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
9 Point Contact In-Line Receptacle Ranger Connector
$29.99
Quantity: 1
Claim Your Seller Account
9 Point Contact In-Line Receptacle Ranger Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9 Point Contact In-Line Receptacle Ranger Connector from Amphenol NEXUS Technologies is a high-density connector designed to meet the rigorous demands of military, defense, and commercial aviation industries. With a robustly designed shell contact and a wide operating temperature range, this connector ensures reliable performance in harsh environments. Featuring 9 contacts and advanced features like IP6K8/9K protection, this connector offers exceptional data transmission capabilities with USB 2.0 compatibility. Trust the Ranger Connector for secure and efficient connections in critical applications.
Product Specifications
Dont Miss The New Connector From Amphenol Nexus Technologies Don
Amphenol NEXUS Technologies produces some of the best connectors today. Our Ranger connectors are designed for high-performance applications and will meet your industry's requirements.
Specifications Alternating Current Ac Voltage
250 V
Specifications Alternative Part
K10WAM-P09WMM0-0000
Specifications Contact Diameter
3 x 0.3 mm | 6 x 0.7 mm
Specifications Contact Finish
Cu-Alloy with Gold Finish
Specifications Contact Type
Sockets
Specifications Current Rate
1 A | 5 A
Specifications Data Transmission
USB 2.0 (480 Mbit/s) + Power
Specifications Degree Of Protection
Ingress Protection (IP6K8) | Ingress Protection (IP6K9K)
Specifications Insulator Material
Polyetheretherketone (PEEK)
Specifications Keying
Brown
Specifications Mating Cycles
5000
Specifications Number Of Contacts
9
Specifications Operating Temperature
-51 to 125 ºC
Specifications Shell Finish
Cu-Alloy with Ruthenium Finish
Specifications Size
0
Specifications Termination Type
Solder
Specifications Type Of Connector
In-Line Receptacle
Specifications Wire Cross Section
22 AWG | 28 AWG
The Difference Between High Density And Standard Variations The
Both products have the same features, such as contact types, insulator material, keying, termination type, degree of protection, operating temperature, shell finish, and mating cycle. However, they have some differences that may affect the connectorâs performance. The differences between the two products:Voltage: Standard variations have voltages between 200V, 300V, 333V, and 450V, while High-Density only has voltage available in 250V.The number of contacts: Standard deviations have 3, 4, 5, 7, 8, 9, 10, 14, and 16 options, while High-Density only has 9, 12, 16, and 27.Data transmission: For Standard, USB 2.0 (480 Mbit/s) is available for NX-G80YAR-P04WFG0-000L and NX-A10YAR-P04XFG0-0000. You can also choose from USB 2.0 (480 Mbit/s) + Power, USB 3.2 Gen 1 x 1 (5 Gbit/s), HDMI 1.3 (8.13 Gbit/s), USB 2.0 (480 Mbit/s) + Power for High-Density. The rest is N/A.Contact diameter: Standard has a contact diameter of 0.5 mm, 0.7 mm, and 0.9 mm, while High-Density offers 3 x 0.3 mm, 6 x 0.7 mm, 10 x 0.3 mm. 2 x 0.7 mm, and 0.3 mm.Contact finish: Standard and High-Density are both Cu-alloy with gold finish.Current rate: High-Density offers a current rate of 1A and 5A for its products. On the other hand, Standard has 5A and 10A available. (to keep the same flow I would switch the order, standard first and HD second.)
Why Should You Opt For The New Ranger Connectors Why Should You
Our new and improved Ranger connectors are made with quality materials by our highly-skilled technicians. It features excellent electrical performance, a secure connection, and is easy to use. Even though we work primarily with the Military and Defense, Telecommunications, and Commercial Aviation sectors, Ranger is applicable for different applications in other industries. Versatility is the main benefit of Ranger connectors. So for more superior projects, it's the ideal option that you must consider. So if you're looking for a connector that can enhance your operation's efficiency, choose Ranger and find out what it offers.
