90in Horizontal Flow Wall Module - ISO5 Cleanroom, 3 Filter Modules
90in Horizontal Flow Wall Module - ISO5 Cleanroom, 3 Filter Modules
SKU:HOR-9d9f6e
Create ISO5 cleanrooms with our 90in Horizontal Flow Wall Module - Portable & Efficient
Regular price
$2,299.99
Regular price
Sale price
$2,299.99
Unit price
per
Initiate Order
90in Horizontal Flow Wall Module - ISO5 Cleanroom, 3 Filter Modules
$2,299.99
Quantity: 1
Claim Your Seller Account
90in Horizontal Flow Wall Module - ISO5 Cleanroom, 3 Filter Modules
$2,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

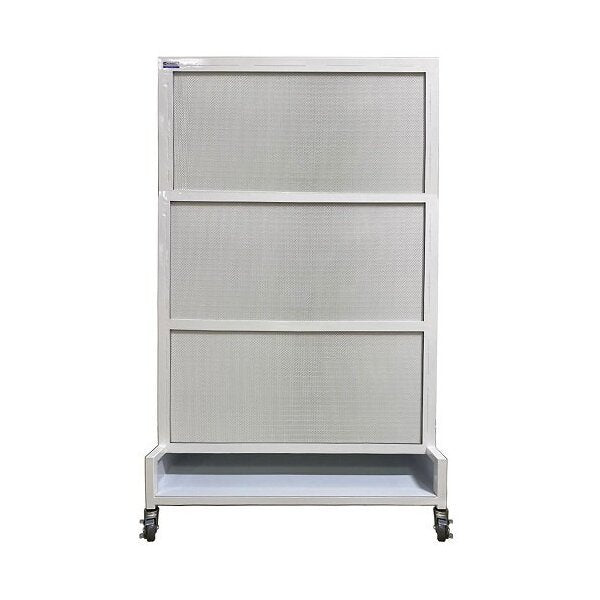

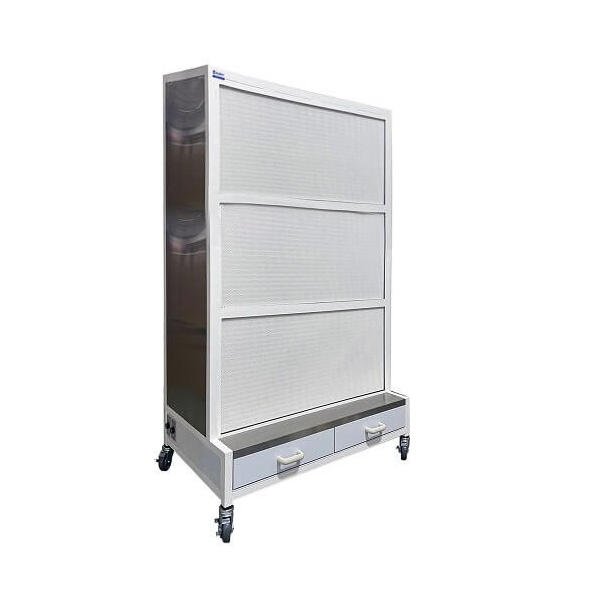

The 90-inch Height Horizontal Flow Wall Module is a versatile solution for creating cleanroom environments or tunnel systems, meeting ISO5/Class 100 standards for clean, particle-free air zones. Constructed from durable powder-coated steel or Stainless Steel, this free-standing unit features lockable casters for mobility. With three fan filter modules included, it offers an average air velocity of 90 ft/min with a horizontal air flow direction. Upgrade options include 304 stainless steel construction and ULPA filters for enhanced efficiency in removing particles as small as 0.12µm. The module also features a UV-C sanitation light and two sliding drawers for added functionality.
Product Specifications
Additional Information Additional Information
Mobile free-standing Laminar flow wallConstructed of epoxy powder coated steel.Construction Material also available in stainless steel.Bottom Shelf & Optional drawers are made of Polypropylene.Polypropylene is highly resistant to corrosive agents.They can be placed individually or in groups to form a wall for a cleanroomAir Flow (High Speed): 580 CFM Per FFUIncludes three fan filter module meets IEST recommended practices in terms of low sound and energy consumption.At 90 FPM, 30" from the filter face, the sound level is measured at 51 dBA. At its highest speed, the moduleâs energy consumption is 340 watts.HEPA filters are 99.99% efficient at removing 0.3µm or larger particles. Filters can be upgraded to ULPA filters that are 99.999% efficient at removing 0.12µm or larger particles.The module includes removable fiberglass pre-filter.
Options Options

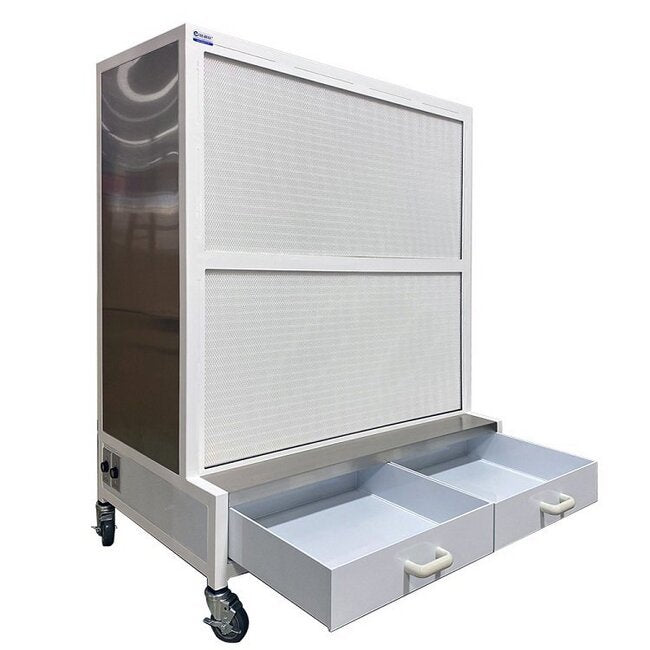

Upgrade to 304 stainless steel.Filter upgrade to ULPA filters that are 99.999% efficient at removing 0.12µm particles.42ââ UV-C sanitation light with a manual switch behind the filter.Two Sliding Drawer , Polypropylene
Specifications Air Flow Direction
Horizontal
Specifications Average Air Velocity
90 ft/min
Specifications Filter Area Height
47 in
Specifications Filter Area Width
46 in
Specifications Hood Width
4 ft
Specifications Material
Polypropylene / Coated Steel
Specifications Overall Depth
30 in
Specifications Overall Height
90 in
Specifications Overall Width
51 in
Specifications Sash Style
No Sash
Specifications Style
Free Standing
