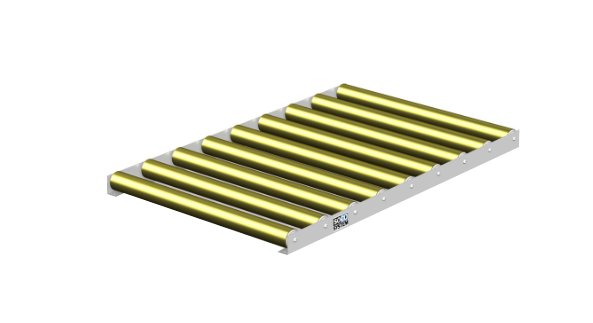

90mm Height Roller Conveyor for Non-Driven Pallets

Name: 90mm Height Roller Conveyor for Non-Driven Pallets
Brand: TPC Packaging Solutions
SKU: PAC-c7faec
Price: 1599.99 USD
Availability: OutOfStock

SKU:PAC-c7faec

Efficient 90mm Height Roller Conveyor for Non-Driven Pallets by SOCO, ensuring secure pallet handling up to 1,500 kg load per pallet with durable construction. Ideal for industrial use.

$1,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 90mm Height Roller Conveyor for Non-Driven Pallets by SOCO is an efficient solution for pallet handling, featuring electro-galvanized steel construction, cold-bend angle profiles, and robust roller fittings. With a carrying capacity of up to 1,500 kg per pallet, it ensures secure and reliable transportation. This conveyor is designed for industrial use, offering durability, safety, and compatibility with various pallet sizes.

Product Specifications

Dimensions Length

1500 mm

Dimensions Width

1370 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm

90mm Height Roller Conveyor for Non-Driven Pallets
