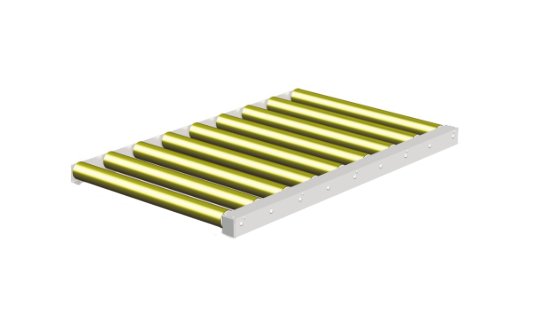

90mm Height Roller Pitch Coupled Pallet Conveyor
90mm Height Roller Pitch Coupled Pallet Conveyor
SKU:PAC-cc07ad
Efficient and durable coupled pallet conveyor with 90mm roller pitch for seamless material handling.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
90mm Height Roller Pitch Coupled Pallet Conveyor
$2,799.99
Quantity: 1
Claim Your Seller Account
90mm Height Roller Pitch Coupled Pallet Conveyor
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1370mm Width x 1000mm Length Coupled Sections Driven Pallet Conveyor is an essential tool for efficient material handling in packaging applications. Manufactured by SOCO, this conveyor ensures durability with cold-bend angle profiles and electro-galvanized steel rollers. With a maximum payload capacity of up to 1,500kg per pallet, it guarantees reliable performance. The chain drive system, protected by a mounted U-profile cover, operates seamlessly for optimal conveyor functionality. Ideal for various pallet shapes and sizes, this conveyor stands at a standard 90mm total height, meeting industry standards for robust and versatile conveyance systems.
Product Specifications
Dimensions Length
1000 mm
Dimensions Width
1370 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
178 mm
Specifications Standard Total Height From Floor To Top Of Roller
90 mm
