910-4 Series 16" Hot Tap Pipe Sleeve with 8" Flange Outlet
910-4 Series 16" Hot Tap Pipe Sleeve with 8" Flange Outlet
SKU:POW-5fea1e
Efficient 16" hot tap pipe sleeve with 8" flange outlet for easy and secure pipe reinforcement. Self-energizing gasket, fusion bonded finish, and heavy welded steel construction.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
910-4 Series 16" Hot Tap Pipe Sleeve with 8" Flange Outlet
$699.99
Quantity: 1
Claim Your Seller Account
910-4 Series 16" Hot Tap Pipe Sleeve with 8" Flange Outlet
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 910-4 Series Hot Tap Pipe Sleeve is a reliable solution designed for Hot Tap Pipe Plug Insertion Systems. This sleeve, made of carbon steel with AWWA C207 Class D flanges, features a self-energizing Nitrile gasket and fusion bonded Flexi-Coat epoxy finish. Its unique design ensures a secure seal without the need for shims or pads, providing easy installation with standard tapping valves. Weighing less than cast iron sleeves, it offers a durable and efficient option for reinforcing pipelines. The 8" Flange Outlet and heavy welded steel construction make it suitable for diverse applications, ensuring a consistent seal even on rough or pitted pipes.
Product Specifications
Bore Range Bore Range Adapter
16.75 in | 425.5 mm
Bore Range Bore Range Clutch
15.00 in | 381.0 mm

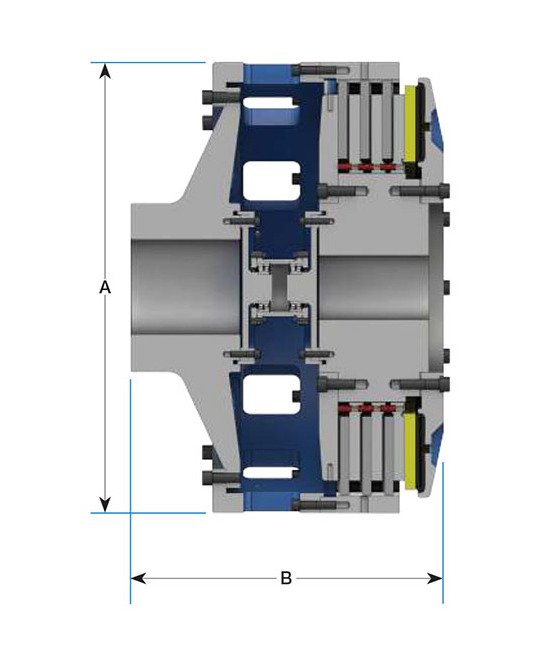

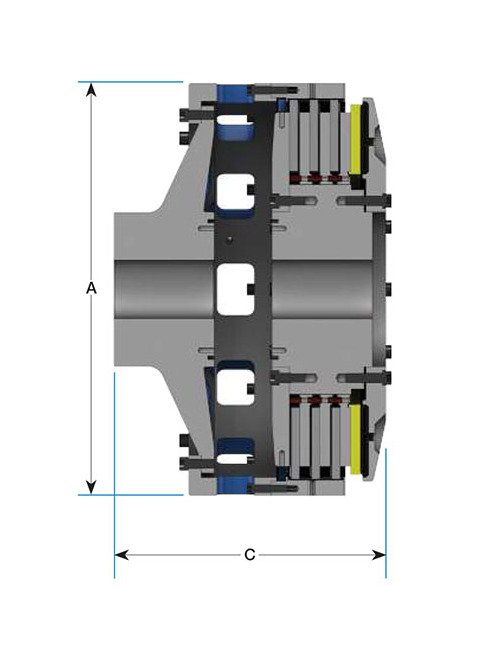

Dimensions Dimension A
66-3/4 in | 1695.5 mm
Dimensions Dimension B
46-1/4 in | 1174.8 mm
Features Features
Reduces peak power demand for high load startsDisc design provide more torque capacity and lining area than drum style productsSuitable for jogging and inchingAvailable with axial locking deviceQuick-change Driving adapters for serviceability
Maximum Speed Maximum Slip Speed
380 rpm
Maximum Speed Maximum Speed
525 rpm
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
11700 in² | 75500 cm²
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
8320000 lbf.in | 940000 N·m
Weight And Inertia Ring Fd And Qc Adapter Inertia
31300 lb·ft² | 1310 kg·m²
Weight And Inertia Ring Fd And Qc Adapter Weight
6400 lb | 2900 kg
Weight And Inertia Total Inertia
53600 lb·ft² | 2250 kg·m²
Weight And Inertia Total Weight
14900 lb | 6760 kg
