910-4 Series 18" Hot Tap Pipe Sleeve
910-4 Series 18" Hot Tap Pipe Sleeve
SKU:POW-2855c9
Durable 18" Hot Tap Pipe Sleeve for fast, no-caulk installation with self-energizing seal and reinforced design.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
910-4 Series 18" Hot Tap Pipe Sleeve
$589.99
Quantity: 1
Claim Your Seller Account
910-4 Series 18" Hot Tap Pipe Sleeve
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 910-4 Series 18 Inch Hot Tap Pipe Sleeve is a durable and easy-to-install solution designed for hot tap pipe plug insertion systems. Made with carbon steel and featuring AWWA C207 Class D flanges, this sleeve is compatible with ANSI 150 lb. drilling standards. The fusion bonded Flexi-Coat epoxy finish ensures longevity, while the self-energizing nitrile gasket provides a reliable seal that improves with line pressure. With a weight lower than cast iron sleeves, this product offers fast installation, no caulking requirements, and a reinforced design without shims or pads.
Product Specifications
Bore Range Bore Range Adapter
14.00 in | 355.6 mm
Bore Range Bore Range Clutch
12.00 in | 304.8 mm

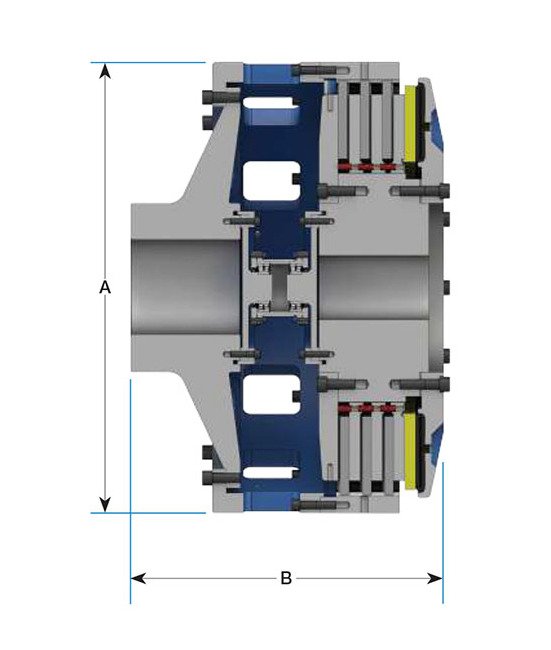

Dimensions Dimension A
56 in | 1422.4 mm
Dimensions Dimension B
39-1/2 in | 1003.2 mm
Features Features
Reduces peak power demand for high load startsDisc design provide more torque capacity and lining area than drum style productsSuitable for jogging and inchingAvailable with axial locking deviceQuick-change Driving adapters for serviceability
Maximum Speed Maximum Slip Speed
480 rpm
Maximum Speed Maximum Speed
650 rpm
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
7200 in² | 46400 cm²
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
4100000 lbf.in | 463000 N·m
Weight And Inertia Ring Fd And Qc Adapter Inertia
13700 lb·ft² | 575 kg·m²
Weight And Inertia Ring Fd And Qc Adapter Weight
4220 lb | 1910 kg
Weight And Inertia Total Inertia
23100 lb·ft² | 970 kg·m²
Weight And Inertia Total Weight
9340 lb | 4240 kg
