910-4 Series 24in Hot Tap Pipe Sleeve with 10in Flange Outlet
910-4 Series 24in Hot Tap Pipe Sleeve with 10in Flange Outlet
SKU:LOW-0802aa
Durable 24in hot tap sleeve with 10in flange outlet, easy installation, reliable seal under pressure
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
910-4 Series 24in Hot Tap Pipe Sleeve with 10in Flange Outlet
$1,299.99
Quantity: 1
Claim Your Seller Account
910-4 Series 24in Hot Tap Pipe Sleeve with 10in Flange Outlet
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 910-4 Series Hot Tap Pipe Sleeve is a durable solution for Hot Tap Pipe Plug Insertion Systems. Made of carbon steel with AWWA C207 Class D flanges and ANSI 150 lb. drilling, this sleeve features a self-energizing Nitrile gasket that ensures a secure seal even on rough pipes. Easy to install with standard tapping valves, this sleeve is designed for reliability under varying line pressures.
Product Specifications

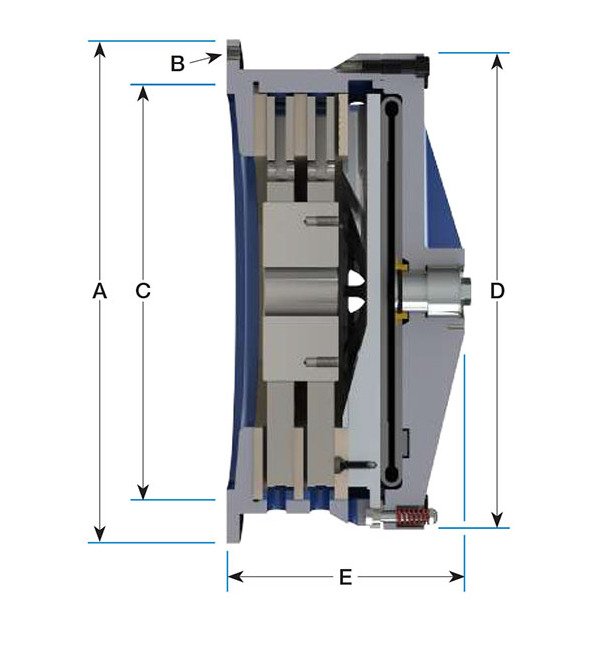

Dimensions Dimension A Imperial Mounting
32.750 in | 831.85 mm
Dimensions Dimension A Metric Mounting
830.00 mm
Dimensions Dimension A Tolerance Imperial Mounting
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.00 in | -0.08 in
Dimensions Dimension B Diameter Imperial Mounting
21/32 in
Dimensions Dimension B Diameter Metric Mounting
18.0 mm
Dimensions Dimension B Hole Circle Imperial Mounting
31.50 in | 800.1 mm
Dimensions Dimension B Hole Circle Metric Mounting
800.0 mm
Dimensions Dimension C H7 Metric Mounting
700.00 mm
Dimensions Dimension C Imperial Mounting
27.375 in | 695.40 mm
Dimensions Dimension C Tolerance Imperial Mounting
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
31-1/4 in | 793.8 mm
Dimensions Dimension E Ductile Slotted Center Plate
10-7/16 in | 265 mm
Dimensions Dimension E Ventilated Center Plate
10 in | 254 mm
Dimensions Maximum Bore Range
6.30 in | 160.0 mm
Dimensions Minimum Bore Range
3.25 in | 82.6 mm
Dimensions Quantity Imperial Mounting
16
Dimensions Quantity Metric Mounting
16
Features Features
Hydraulic actuation availableHigh cycle lifePredictable preventative maintenanceSingle-point actuator connectionEnd-of-shaft mountingSlotted solid and ventilated center plates available
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Lining Area
750 in² | 4900 cm²
Specifications Maximum Slip Speed
847 rpm
Specifications Maximum Speed Complete Clutch
1050 rpm
Specifications Maximum Speed Hubcenter Plates Only
1270 rpm
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
358000 lbf·in | 40430 N·m
Weight And Inertia Hub And Center Plate Inertia
120 lb·ft² | 5.0 kg·m²
Weight And Inertia Hub And Center Plate Weight
230 lb | 100 kg
Weight And Inertia Total Inertia
680 lb·ft² | 28 kg·m²
Weight And Inertia Total Weight
950 lb | 430 kg
