910-4 Series Hot Tap Pipe Sleeve - 14-16 in. Nominal Pipe Size
910-4 Series Hot Tap Pipe Sleeve - 14-16 in. Nominal Pipe Size
SKU:LOW-250201
Durable hot tap pipe sleeve for 14-16 in. pipes with carbon steel body, AWWA C207 Class D flanges, and Nitrile gasket. Easy installation for reliable sealing in institutional applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The 910-4 Series 14 to 16 Inch Nominal Pipe Size Hot Tap Pipe Sleeve is a durable and efficient solution for hot tap pipe plug insertion systems. Constructed with carbon steel body, AWWA C207 Class D flanges, and Nitrile gasket, this sleeve ensures a secure fit without the need for shims or pads. With ANSI 150 lb. drilling and fusion bonded Flexi-Coat epoxy finish, it offers exceptional sealing and resistance to line pressure. The sleeve's generous cross-section ensures a reliable seal even on rough pipes, while the self-energizing gasket enhances performance. Ideal for institutional and government buyers requiring easy installation, this sleeve is compatible with standard tapping valves and can be customized based on specific requirements.
Product Specifications

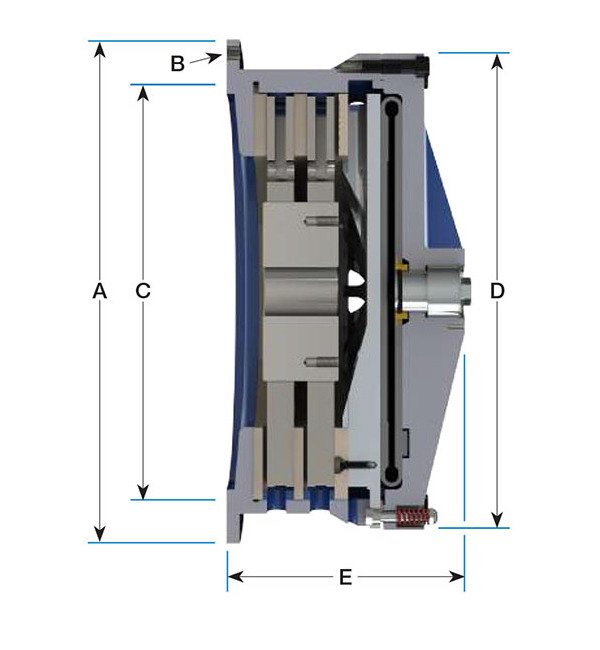

Dimensions Dimension A Imperial Mounting
23.250 in | 590.55 mm
Dimensions Dimension A Metric Mounting
590.00 mm
Dimensions Dimension A Tolerance Imperial Mounting
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.00 in | -0.08 in
Dimensions Dimension B Diameter Imperial Mounting
21/32 in
Dimensions Dimension B Diameter Metric Mounting
18.0 mm
Dimensions Dimension B Hole Circle Imperial Mounting
22.00 in | 558.8 mm
Dimensions Dimension B Hole Circle Metric Mounting
560.0 mm
Dimensions Dimension C H7 Metric Mounting
470.00 mm
Dimensions Dimension C Imperial Mounting
18.250 in | 463.63 mm
Dimensions Dimension C Tolerance Imperial Mounting
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
22 in | 558.8 mm
Dimensions Dimension E Ductile Slotted Center Plate
12-9/16 in | 319 mm
Dimensions Dimension E Ventilated Center Plate
12-7/8 in | 327 mm
Dimensions Maximum Bore Range
4.90 in | 124.5 mm
Dimensions Minimum Bore Range
2.75 in | 69.9 mm
Dimensions Quantity Imperial Mounting
12
Dimensions Quantity Metric Mounting
12
Features Features
Hydraulic actuation availableHigh cycle lifePredictable preventative maintenanceSingle-point actuator connectionEnd-of-shaft mountingSlotted solid and ventilated center plates available
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Lining Area
720 in² | 4600 cm²
Specifications Maximum Slip Speed
1300 rpm
Specifications Maximum Speed Complete Clutch
1480 rpm
Specifications Maximum Speed Hubcenter Plates Only
1950 rpm
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
324000 lbf·in | 36600 N·m
Weight And Inertia Hub And Center Plate Inertia
50 lb·ft² | 2.1 kg·m²
Weight And Inertia Hub And Center Plate Weight
220 lb | 99 kg
Weight And Inertia Total Inertia
240 lb·ft² | 10 kg·m²
Weight And Inertia Total Weight
580 lb | 260 kg
