923 Series Horizontal Gear Shifter System
923 Series Horizontal Gear Shifter System
SKU:PUS-924b5d
Efficient and durable horizontal gear shifter system for buses, trucks, and heavy-duty vehicles.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
923 Series Horizontal Gear Shifter System
$299.99
Quantity: 1
Claim Your Seller Account
923 Series Horizontal Gear Shifter System
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

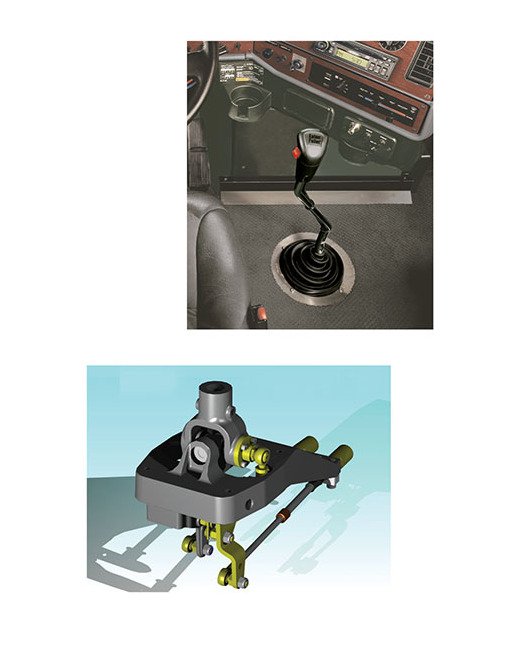

The 923 Series Horizontal Gear Shifter System is a top-tier solution for floor-mounted shifter applications, ideal for bus, coach, truck, and heavy-duty vehicle use. Constructed from pressure die-cast aluminum, this system ensures maintenance-free operation with clean, precise shifts and reduced cab noise levels. Its flexible design accommodates various cable end fittings, meeting the needs of heavy/medium duty cable applications with easy installation and adjustment-free use.
Product Specifications
Applications 0
Floor mounted shifterBus, coach & truck applicationsServo & non-servo assisted transmissionsHeavy-duty plant/agricultural vehiclesHeavy/medium duty cable applications
Features 0
Easy installation, adjustment freeMaintenance-free lifeEnds gear jump outClean precise shiftsNo knob-to-cab relative movement in floating cabsNo action required to tilt cabVibration from drive train is not transmittedReduced cab noise levelsLow costInstallation design to customer requirementsFlexible capability with different cable end fittings
Material 0
Pressure Die-Cast Aluminum
Specifications Accidental Overload Knob
100 kg | 220 lb
Specifications Approximate Recommended Handle Length
24 to 30 "
Specifications Normal Working Load Knob
3 to 5 kg | 6.6 to 11 lb
Specifications Note

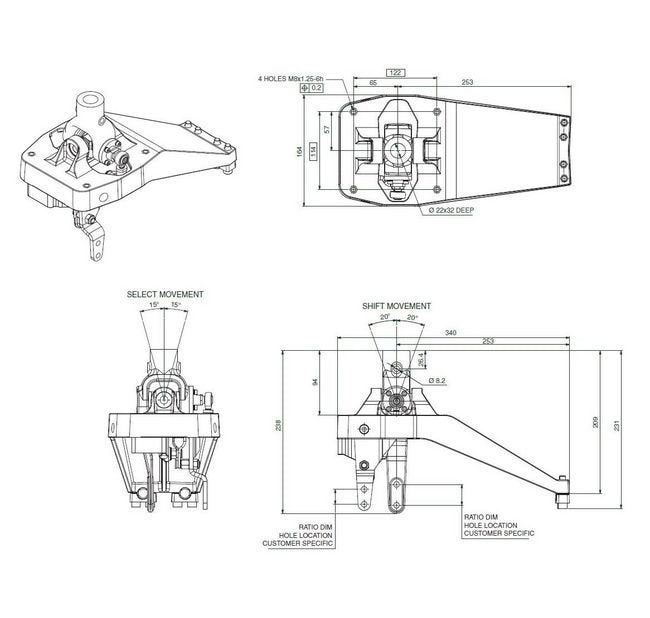

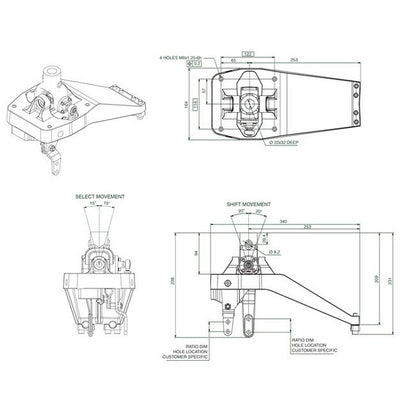

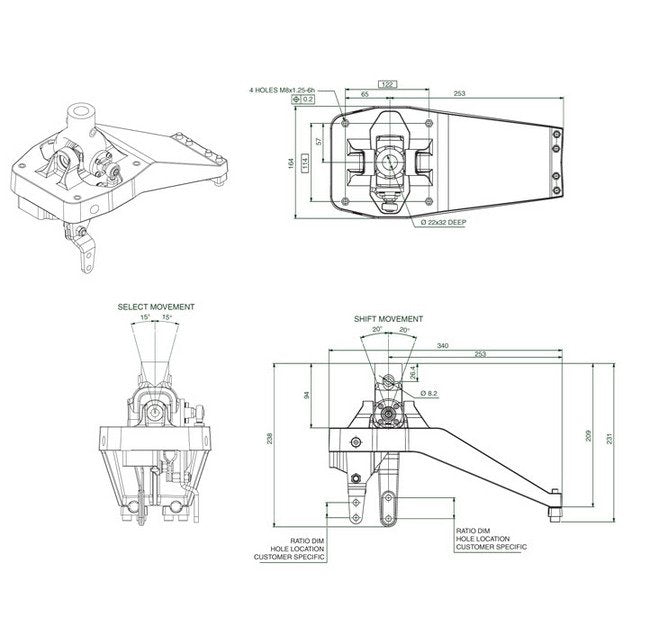

All line art dimensions are represented as follows: in (mm)3D CAD Models available upon request.
Specifications Operating Temperature
-40 to 120 ºC | -40 to 248 ºF
Specifications Recommended Handle Length
610 to 760 mm
Specifications Weight
3.2 kg | 7.0 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
