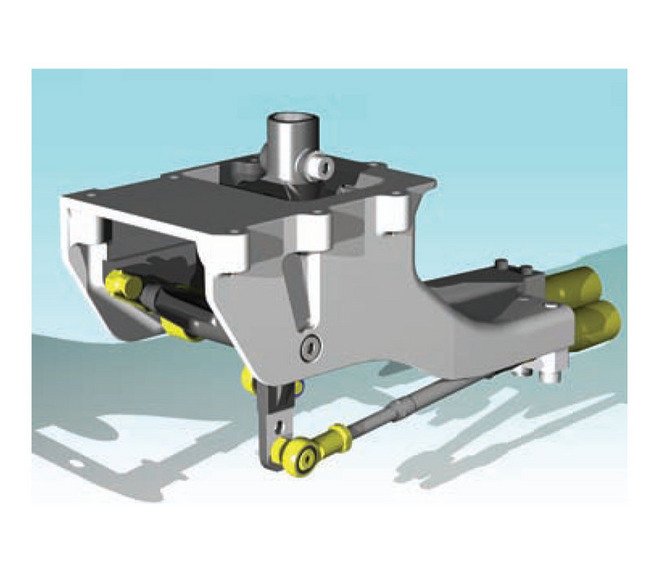

925 Series Horizontal Gear Shifter System
925 Series Horizontal Gear Shifter System
SKU:PUS-908cd4
Upgrade to the 925 Series for precise shifts and maintenance-free operation.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
925 Series Horizontal Gear Shifter System
$169.99
Quantity: 1
Claim Your Seller Account
925 Series Horizontal Gear Shifter System
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 925 Series Horizontal Gear Shifter System is a top-of-the-line product designed for efficiency and durability. With a Normal Working Load of 3 to 5 kg, this system ensures smooth and precise shifts in various applications like center console mounted shifters, bus, coach, and truck transmissions. Its pressure die-cast aluminum construction guarantees maintenance-free operation and reduced cab noise levels, meeting the highest industry standards for quality and performance.
Product Specifications
Applications 0
Center console mounted shifterServo & non-servo assisted transmissionsBus, coach & truck applicationsHeavy/medium plant/agricultural vehiclesHeavy/medium duty cable applications
Features 0
Easy installation, adjustment freeMaintenance-free lifeEnds gear jump outClean precise shiftsNo knob-to-cab relative movement in floating cabsNo action required to tilt cabVibration from drive train is not transmittedReduced cab noise levelsLow costInstallation design to customer requirementsFlexible capability with different cable end fittings
Material 0
Pressure Die-Cast Aluminum
Specifications Accidental Overload Knob
100 kg | 220 lb
Specifications Approximate Recommended Handle Length
12 to 15 "
Specifications Normal Working Load Knob
3 to 5 kg | 6.6 to 11 lb
Specifications Note

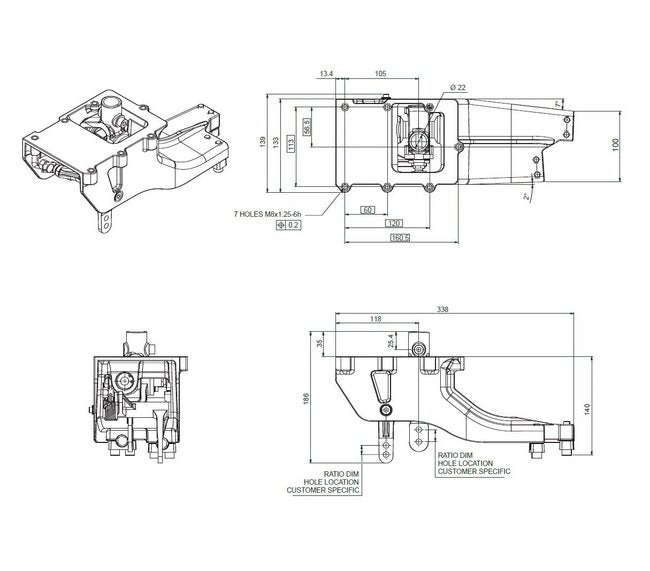

All line art dimensions are represented as follows: in (mm)3D CAD Models available upon request.
Specifications Operating Temperature
-40 to 120 ºC | -40 to 248 ºF
Specifications Recommended Handle Length
305 to 380 mm
Specifications Weight
3.0 kg | 6.6 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
