936-5 Series 20 Inch Mechanical Plug Safety Gage
936-5 Series 20 Inch Mechanical Plug Safety Gage
SKU:HIG-bb4f28
Secure your testing with the 936-5 Series 20 Inch Mechanical Plug Safety Gage for 20" pipes. Prevent plug loss and ensure safety during testing procedures.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
936-5 Series 20 Inch Mechanical Plug Safety Gage
$279.99
Quantity: 1
Claim Your Seller Account
936-5 Series 20 Inch Mechanical Plug Safety Gage
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 936-5 Series 20 Inch Mechanical Plug Safety Gage by Petersen® is specifically designed for use with mechanical test plugs. Made of painted carbon steel with a plated chain, these safety gages securely clamp to the outside diameter of standard 20-inch pipes. The installation procedure ensures proper functionality, preventing the test plug from becoming a projectile and ensuring safe testing practices. Although not pressure rated, these safety gages play a crucial role in pipe testing safety and can be tailored to meet specific pipeline specifications and pressures.

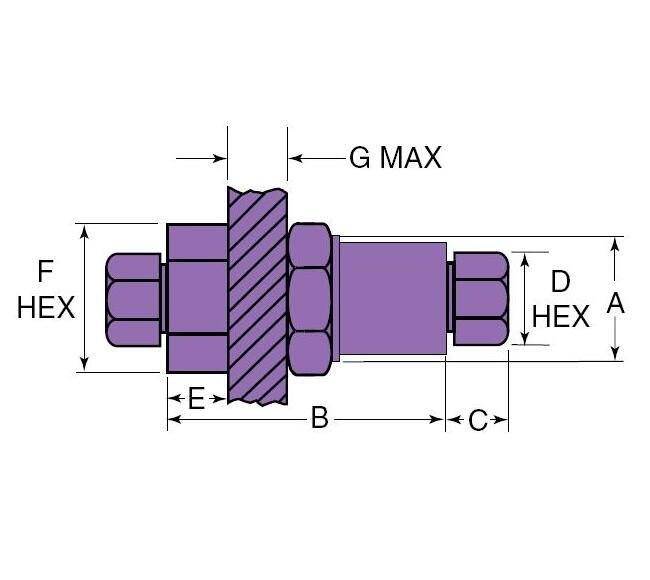

Product Specifications
Specifications A Panel Hole Drill Size
1.12 in | 28.45 mm
Specifications B Length
2.38 in | 60.45 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D Hex
0.93 in | 23.62 mm
Specifications E Length
0.78 in | 19.81 mm
Specifications F Hex
1.38 in | 35.05 mm
Specifications G Thickness
0.38 in | 9.65 mm
Specifications Minimum Opening
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
12.70 mm | 1/2 in
Specifications Pressure Rating
10000 psi | 689.46 bar
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
