95A T-Range 3 Pole AC Contactor with AC Operating Coil
95A T-Range 3 Pole AC Contactor with AC Operating Coil
SKU:DPC-f34f0b
High-performance 95A T-Range 3 Pole AC Contactor with AC Operating Coil, BSEN60947/IEC60947/UL/CSA compliant
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
95A T-Range 3 Pole AC Contactor with AC Operating Coil
$189.99
Quantity: 1
Claim Your Seller Account
95A T-Range 3 Pole AC Contactor with AC Operating Coil
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 95 Ampere Maximum Inductive Alternating Current (AC) T-Range 3 Pole Contactor is designed for high-performance applications, supporting up to 125 A continuous AC. Featuring normally closed/open auxiliary contacts, it conforms to BSEN60947, IEC60947, UL, CSA standards, ensuring reliability. With a range of 25-60 hp power ratings at various voltages, this contactor offers superior protection and efficiency. Ideal for institutional usage, it boasts a mechanical durability of 10 cycles and advanced control circuit characteristics.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Average Operating Time At Rated
6 to 20 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
4 cycles
Control Circuit Characteristics Operational Control Voltage For
0.8 to 1.1 Uc
Control Circuit Characteristics Rated Control Circuit Voltage Uc
12 to 660 V

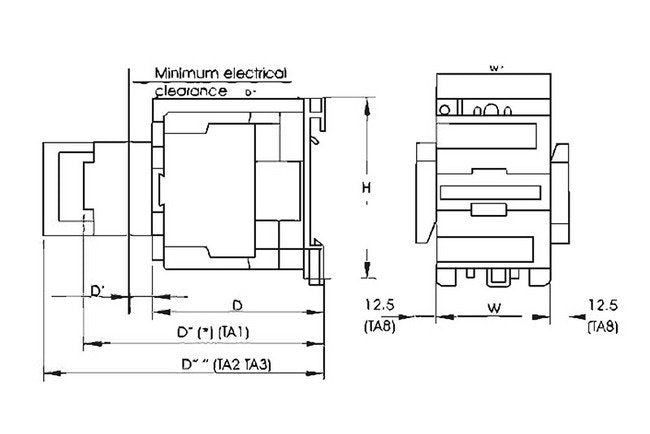

Dimensions Depth D
120 mm
Dimensions Dimension C
125 mm
Dimensions Dimension D 008
140 mm
Dimensions Dimension D Lacdk1
173 mm
Dimensions Dimension D Ta1
153 mm
Dimensions Dimension G
40 mm
Dimensions Height H
127 mm
Dimensions Minimum Electrical Clearance D
12 mm
Dimensions Width W
85 mm
Integral Auxillary Contact Characteristics Rated Operational Vol
0 to 660 V
Pole Characteristics Maximum Power Rating At Single Phase 120 Vo
7.5 hp
Pole Characteristics Maximum Power Rating At Single Phase 230 Vo
15 hp
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
25 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
25 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
60 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
60 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
7.2 W
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
540 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
1100 A
Pole Characteristics Rated Insulation Voltage
1000 V
