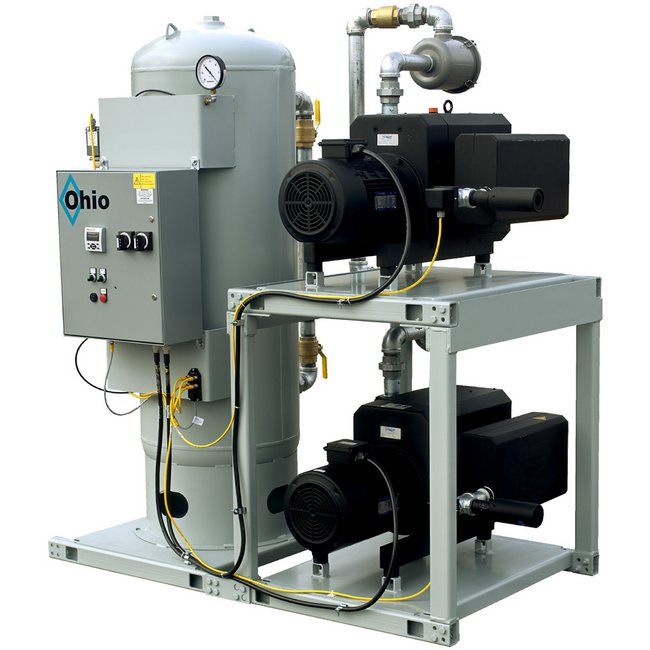

The Ohio® Medical Oil-Less Rotary Claw Medical Vacuum System is fully NFPA® 99 compliant for use in medical vacuum and WAGD applications. The unit consists of electric motor driven pumps, vacuum receiver, electrical control system, and interconnection piping and wiring. The components are modularly assembled to accommodate most existing doorways and designed for serviceability. The packaged unit is factory tested prior to shipment and warranted for a period of 30 months from date of shipment or 24 months from date of start-up.
Product Specifications
Accessories
Included for job site installation are inlet and discharge flexible connectors, source isolation valve, vibration mounting pads, and touch-up paint.
Features
Oil-Less, non-contacting pump chamber designNo friction (or wearing parts) in pumping chamberLow maintenanceLong lifeReliabilityHigh efficiency (cfm/hp)Low cost of ownershipClean airUL Listed Electrical Control Panel
Specifications Compliant
National Fire Protection Association (NFPA® 99)
Specifications Design Capacity 50 Hertz Hz At 19 Inch Of Mercury
65 scfm
Specifications Design Capacity 60 Hertz Hz At 19 Inch Of Mercury
78 scfm
Specifications Each Pump Capacity At 50 Hertz Hz Frequency
32.5 scfm
Specifications Each Pump Capacity At 60 Hertz Hz Frequency
39 scfm
Specifications Height C
96 in
Specifications Length A
114 in
Specifications Power Each Pump
5 hp
Specifications Pump Type
Rotary Claw
Specifications Tank Size
240 gal
Specifications Warranty From Date Of Shipment
30 months
Specifications Warranty From Date Of Start Up
24 months
Specifications Weight
2750 lb
Specifications Width B
62 in
System Controls

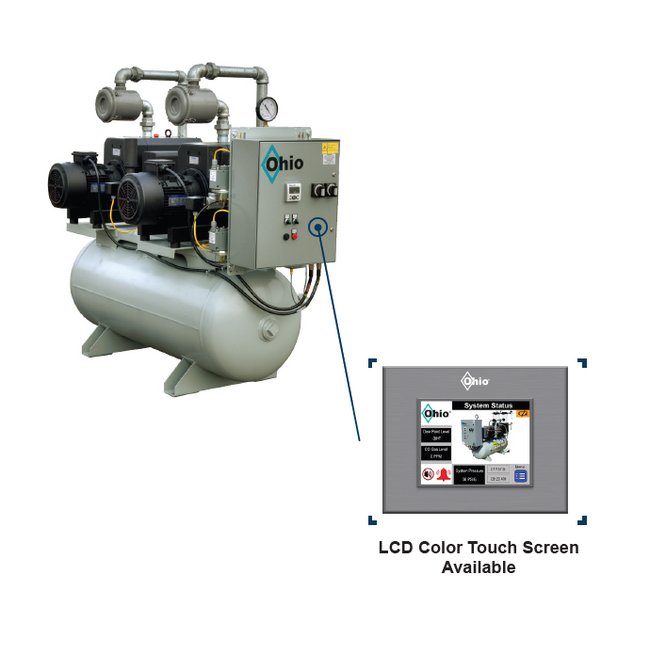

The UL® listed electrical motor control system contains a fuse less design in a NEMA 12 enclosure. The "Continuous On Demand” feature stops the operation of the motors during periods of low or no demand. The controls include individual self protected combination motor controls with short circuit, single phase and thermal overload protection, Soft Start Technology, individual 120 volt control circuit transformers with fuse less primary and secondary protection, pressure sensors, and an electronic controller to automatically switch the operating sequence of the vacuum pumps.The cabinet door has an HMI (Human Machine Interface) Color Touch Screen system status display to include system pressure, pump operation, accumulated time, maintenance interval, fault conditions, and silence button; lighted Hand-off-Automatic selector switches and safety disconnect operating handles.All required local alarm functions are integrated into the packaged system. The circuitry is designed so the audible signal can be silenced and the visual indicator will remain until the fault has been cleared and the reset button actuated. Local alarm functions are provided for reserve pump in use (lag alarm). Dry contacts are furnished for remote (master) alarm signals.
Vacuum Pump Module

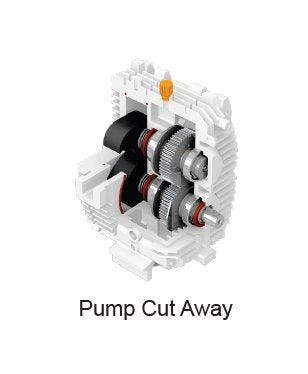

The Rotary Claw Vacuum Pumps are single stage, and air cooled. The pump design utilizes two ductile iron claw type rotors rotating in opposite direction inside a cast iron housing. The timing of the rotors are maintained by a precision gear set which is separated from the oil free pumping chamber by a combination of lip seals. The vacuum pump assembly also includes a 5 micron particulate inlet vacuum filter, vacuum regulator/relief valve, and exhaust silencer. The assembly also includes high temperature switch, check valves, pump isolation valves, a source isolation valve and flexible connectors.
Vacuum Receiver
The Vacuum Receiver is constructed to ASME standards, rated for full vacuum, and include a valved by-pass, manual drain valve, vacuum gauge and the National Board label.
