990 lb Stockchaser Burden Carrier - High Capacity Vehicle Weight
990 lb Stockchaser Burden Carrier - High Capacity Vehicle Weight
SKU:STO-6e7d2d
Efficiently move heavy loads in tight spaces with the 990 lb Stockchaser Burden Carrier. Compact, maneuverable, and high-capacity.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
990 lb Stockchaser Burden Carrier - High Capacity Vehicle Weight
$14,999.99
Quantity: 1
Claim Your Seller Account
990 lb Stockchaser Burden Carrier - High Capacity Vehicle Weight
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

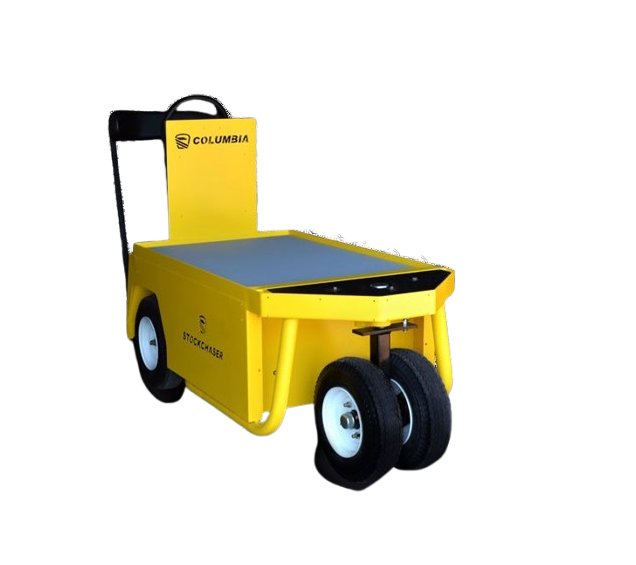

The 990 lb Stockchaser Burden Carrier is a robust solution for efficiently moving heavy loads in confined spaces. With a deck capacity of up to 1,000 lbs, this compact performer excels in maneuverability and carrying capacity. Equipped with an optional special duty package for a towing capacity of up to 1,000 lbs, this vehicle ensures ease of transport for bulky items. The stand-up operation and adjustable backrest offer a comfortable and secure position for the operator. Its rugged tubular steel chassis and steel body panels make it durable, while the dual tire front fork provides exceptional stability, making it the ideal narrow aisle burden carrier in the market.
Product Specifications
Additional Information
The adjustable backrest and stand-up operation provide a safe and comfortable position for the driver. The Stockchaser's tubular steel chassis and steel body panels make it as rugged as it is maneuverable. And, with its standard dual tire front fork, it is the most stable narrow aisle burden carrier available on the market today.
Body Accessories
HornBattery Discharge IndicatorReverse Warning AlarmComposite Deck Board With High Density Polyethylene Overlay
Body Body
14-Gauge Powder Coated Structural Steel Smooth Plate Body
Body Lighting
Optional - Head, Tail & Brake Light With Tail Light Guard
Body Passenger Capacity
One with Up to Seven (Optional Transport Express Package Seating)
Body Seating
Stand Up Operation, Adjustable Padded Back Rest
Chassis Brakes
Dual Mechanical Rear DrumAutomatically Engaged Upon Dismount
Chassis Frame
Heavy-Duty Welded Steel Chassis with 14 Gauge Structural Steel Smooth Body
Chassis Steering
Dual Front Fork, Direct Link Mechanical
Chassis Suspension
Rigidly Mounted
Chassis Tires
4 - 4.80” x 8”, Pneumatic, 6 ply rated, Load range C tires mounted on painted steel rims.
Dimensions Ground Clearance
3.5 in
Dimensions Load Bed Height
24 in
Dimensions Step Height
6 in
Note
Features, options, specifications, color availability and model designation are subject to change without notice. Some vehicles are pictured with options that may be available at extra cost or may not be available on some models. Ask your dealer about the availability of options and verify that the vehicle you order includes the equipment you require.All specifications are subject to change without notice.
Performance Curb To Curb Turning Radius
133 in
Performance Intersecting Aisle Turning Radius
55 in
Performance Maximum Forward Speed
8.5 mph
Performance Range
0 to 40 mil
Performance Voltage
48 V
Power Train Batteries
Eight, 6 Volt, 232 Amp Hour, 122 Minute, Deep Cycle
Power Train Charger
Built-In, Micro-Processor Controlled, Fully Sealed, Global, 110 - 240 VAC, 50/60 HZ
Power Train Controller Rating
400 A
Power Train Controller Type
Programmable, Solid State, Reduced Speed Reverse with Diagnostic LED & Calibrator Interface
Power Train Directional Control
Fully Electronic Direction Switching with Console Mounted Selector Switch
Power Train Drive Unitdifferential
Automotive Style, Helical Gears in Oil Bath, Direct to Motor, 12.44:1 Final Drive Ratio
Power Train Motor
48 Volt, Separately Excited, NEMA Class H Temperature Rated
Power Train Motor Braking Mode
Regenerative and Pedal Proportional Braking with Top Speed Limiting
Power Train Power At 1750 Revolutions Per Minute Rpm Speed
15.3 hp
Technical Specs Brands
Columbia
Weight And Capacity Rated Capacity
1,000 lb
Weight And Capacity Towing Capacity
0 to 1,000 lb
Weight And Capacity Vehicle Weight
990 lb
