9980 Ultra-Temp® Standard High-Temperature Industrial Oven
9980 Ultra-Temp® Standard High-Temperature Industrial Oven
SKU:BLU-a5329a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
9980 Ultra-Temp® Standard High-Temperature Industrial Oven
$49.99
Quantity: 1
Claim Your Seller Account
9980 Ultra-Temp® Standard High-Temperature Industrial Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

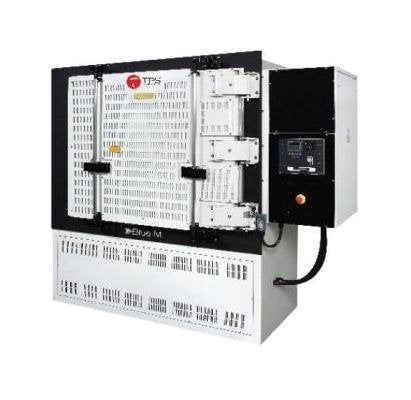

The Blue M Ultra-Temp® Standard High-Temperature Industrial Oven is ideal for annealing, heat treating, stress relieving, binder burn-out, ceramic firing and a number of other high-temperature processes.
Product Specifications
Specifications Ac Voltage
208 V | 240 V | 480 V
Specifications Engineered Options
Lead-in ports | Redundant over-temperature protection | Single and double doors and hinge placement options | Special control systems | Vycor® glass observation panel
Specifications Exterior Depth
43 in | 1092 mm
Specifications Exterior Height
77 in | 1956 mm
Specifications Exterior Width
94 in | 2388 mm
Specifications Frequency
60 Hz
Specifications General Specifications
Resolution: ± 0.1°C | Temperature range: 15°C above ambient to 704°C (1299°F) | Uniformity: ± 2% of setpoint | Control Accuracy: ± 0.5°C
Specifications Interior Depth
24 in | 610 mm
Specifications Interior Height
36 in | 914 mm
Specifications Interior Volume
24 ft³
Specifications Interior Width
48 in | 1219 mm
Specifications Line Current Per 208 Volts V At 3 Phase
72 A
Specifications Line Current Per 240 Volts V At 3 Phase
82 A
Specifications Line Current Per 480 Volts V At 3 Phase
41 A
Specifications Machine Footprint
32.2 ft²
Specifications Rated Power Per 208 Volts V At 3 Phase
22.5 kW
Specifications Rated Power Per 240 Volts V At 3 Phase
30 kW
Specifications Rated Power Per 480 Volts V At 3 Phase
30 kW
Specifications Ultra Temp High Temperature Industrial Oven Featu
6 Inch (in) of mineral wool insulation to minimize heat loss | Blue M Pivot Lock door latch to seal gaskets at the highest operating temperatures | Blue M tadpole door gasket design | Heat shielded doors for low skin temperature | Safety door switch shuts down heaters and blower when door opens | Welded and sealed inner chamber eliminates fume migration into the insulation
Specifications Ultra Temp Options
24-hour, 7-day digital timer | Circular chart recorder | Comm-Link RS-485 to RS-232 converter | Motorized exhaust damper | Reverse door hinge | Stainless steel shelves
