9A AC T-Range 3 Pole Contactor

Name: 9A AC T-Range 3 Pole Contactor
Brand: Shamrock Controls div. of Burns Controls Company
SKU: DPC-133719
Price: 69.99 USD
Availability: OutOfStock

SKU:DPC-133719

Reliable 9A AC T-Range 3 Pole Contactor, compliant with BSEN60947 & IEC60947.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

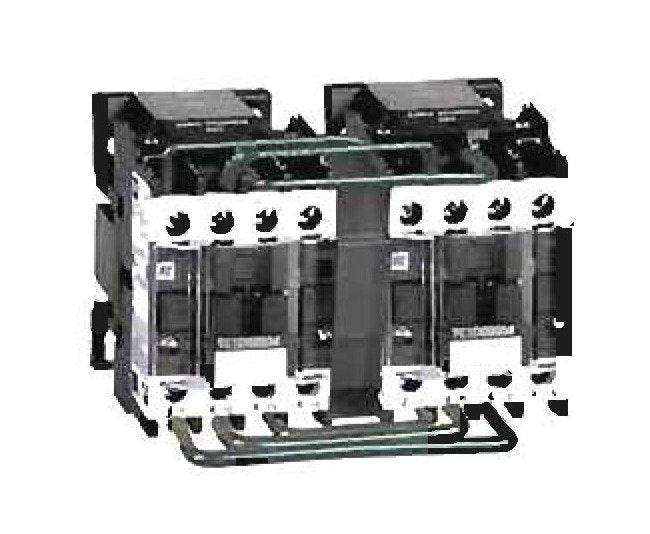

The 9 Ampere (A) Maximum Inductive Alternating Current (AC) T-Range 3 Pole Mechanically Interlocked Contactor is a reliable solution for both consumer and institutional applications. With a maximum resistive current of 25A, this contactor ensures efficient power control at various voltages. Compliant with BSEN60947, IEC60947, and other industry standards, it offers enhanced safety features and reliable performance. Approved by CSA and UL, this contactor guarantees high-quality and durability for a wide range of electrical applications.

Product Specifications

Control Circuit Characteristics Average Consumption At 20 Degree

0.3 VÂ·A

Control Circuit Characteristics Average Operating Time At Rated

4 to 12 ms

Control Circuit Characteristics Mechanical Life Rated Control Ci

15 cycles

Control Circuit Characteristics Operational Control Voltage For

0.8 to 1.1 Uc

Control Circuit Characteristics Rated Control Circuit Voltage Uc

12 to 660 V

Control Circuit Characteristics Rated Operational Voltage

0 to 660 V

Dimensions Depth D

80 mm

Dimensions Dimension C

80 mm

Dimensions Dimension D Lacdk1

133 mm

Dimensions Dimension D Ta1

113 mm

Dimensions Dimension D Ta2ta3

120 mm

Dimensions Dimension G

35 mm

Dimensions Height H

74 mm

Dimensions Minimum Electrical Clearance D

10 mm

Dimensions Width W

45 mm

Pole Characteristics Maximum Power Rating At Three Phase 200 Vol

2 hp

Pole Characteristics Maximum Power Rating At Three Phase 230 Vol

2 hp

Pole Characteristics Maximum Power Rating At Three Phase 480 Vol

5 hp

Pole Characteristics Maximum Power Rating At Three Phase 600 Vol

7.5 hp

Pole Characteristics Number Of Power Poles

Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo

0.2 W

Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V

250 A

Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V

85 A

Pole Characteristics Rated Breaking Capacity At 500 Voltage V

175 A

Pole Characteristics Rated Insulation Voltage

1000 V

Pole Characteristics Rated Making Capacity Conforming To Interna

250 A
