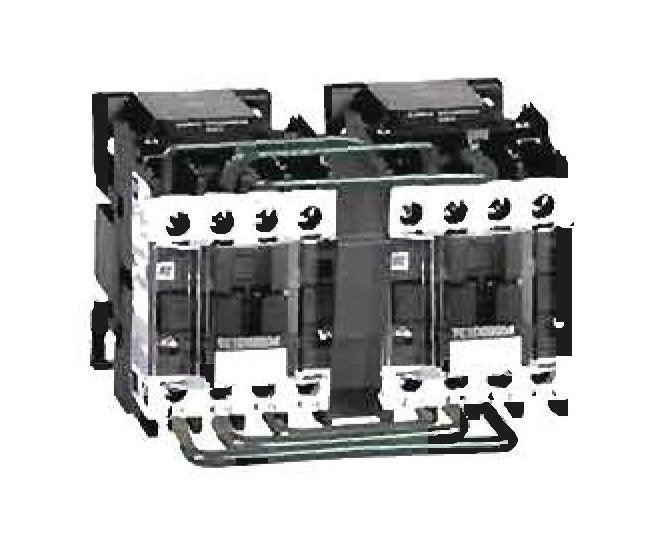

9A AC T-Range 3 Pole Contactor with Interlock

Name: 9A AC T-Range 3 Pole Contactor with Interlock
Brand: Shamrock Controls div. of Burns Controls Company
SKU: DPC-e7f79e
Price: 129.99 USD
Availability: OutOfStock

SKU:DPC-e7f79e

High-performance 9A AC T-Range 3 Pole Contactor with Interlock, ideal for reliable electrical switching.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 9 Ampere Maximum Inductive Alternating Current T-Range 3 Pole Mechanically Interlocked Contactor, with a pre-wired AC Operating Coil, is an essential component for electrical systems requiring reliable switching capabilities. This contactor, by Shamrock Controls, offers a maximum resistive current of 25A and is compliant with a range of international standards including BSEN60947, IEC60947, and UL approvals. With attributes like normally closed and normally open auxiliary contacts, this contactor provides versatility for various applications. It ensures protection against direct finger contacts, operates efficiently in temperatures ranging from -40 to +70 ÂºC, and withstands voltage fluctuations across different phases, making it ideal for both consumer and institutional use.

Product Specifications

Control Circuit Characteristics Average Consumption At 20 Degree

0.3 VÂ·A

Control Circuit Characteristics Average Operating Time At Rated

4 to 12 ms

Control Circuit Characteristics Mechanical Life Rated Control Ci

15 cycles

Control Circuit Characteristics Operational Control Voltage For

0.8 to 1.1 Uc

Control Circuit Characteristics Rated Control Circuit Voltage Uc

12 to 660 V

Control Circuit Characteristics Rated Operational Voltage

0 to 660 V

Dimensions Depth D

80 mm

Dimensions Dimension C

80 mm

Dimensions Dimension D Lacdk1

133 mm

Dimensions Dimension D Ta1

113 mm

Dimensions Dimension D Ta2ta3

120 mm

Dimensions Dimension G

35 mm

Dimensions Height H

74 mm

Dimensions Minimum Electrical Clearance D

10 mm

Dimensions Width W

45 mm

Pole Characteristics Maximum Power Rating At Three Phase 200 Vol

2 hp

Pole Characteristics Maximum Power Rating At Three Phase 230 Vol

2 hp

Pole Characteristics Maximum Power Rating At Three Phase 480 Vol

5 hp

Pole Characteristics Maximum Power Rating At Three Phase 600 Vol

7.5 hp

Pole Characteristics Number Of Power Poles

Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo

0.2 W

Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V

250 A

Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V

85 A

Pole Characteristics Rated Breaking Capacity At 500 Voltage V

175 A

Pole Characteristics Rated Insulation Voltage

1000 V

Pole Characteristics Rated Making Capacity Conforming To Interna

250 A
