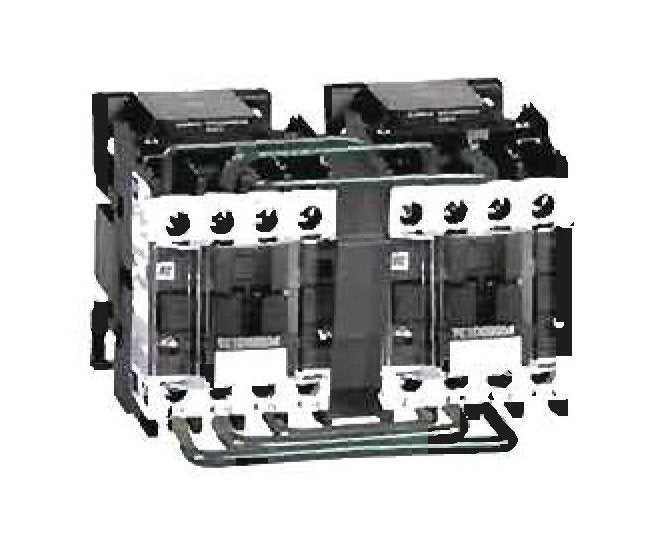

9A Inductive AC Contactors - 3 Pole, Mechanically Interlocked
9A Inductive AC Contactors - 3 Pole, Mechanically Interlocked
SKU:DPC-03ab10
Reliable 9A Inductive AC Contactors with 25A capacity, auxiliary contacts, and high voltage insulation. Compliant with IEC60947, CSA, UL standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
9A Inductive AC Contactors - 3 Pole, Mechanically Interlocked
$189.99
Quantity: 1
Claim Your Seller Account
9A Inductive AC Contactors - 3 Pole, Mechanically Interlocked
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9 Ampere Maximum Inductive AC Contactors are designed for reliable performance, featuring a maximum resistive AC of 25A and power ratings up to 7.5 hp. With auxiliary contacts, insulation voltage of 1000V, and conforming to multiple standards including IEC60947, CSA, and UL approvals, these contactors ensure robust protection and compliance. Ideal for DP contactors, these units offer precise control and durability for various institutional applications.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Average Operating Time At Rated
4 to 12 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
15 cycles
Control Circuit Characteristics Operational Control Voltage For
0.8 to 1.1 Uc
Control Circuit Characteristics Rated Control Circuit Voltage Uc
12 to 660 V
Control Circuit Characteristics Rated Operational Voltage
0 to 660 V
Dimensions Depth D
80 mm
Dimensions Dimension C
80 mm
Dimensions Dimension D Lacdk1
133 mm
Dimensions Dimension D Ta1
113 mm
Dimensions Dimension D Ta2ta3
120 mm
Dimensions Dimension G
35 mm
Dimensions Height H
74 mm
Dimensions Minimum Electrical Clearance D
10 mm
Dimensions Width W
45 mm
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
5 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
7.5 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
0.2 W
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
250 A
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
85 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
175 A
Pole Characteristics Rated Insulation Voltage
1000 V
Pole Characteristics Rated Making Capacity Conforming To Interna
250 A
