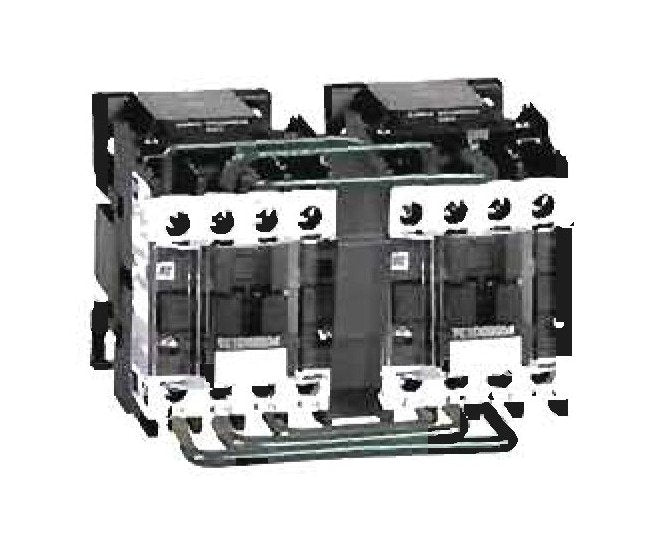

9A Inductive AC T-Range 3 Pole Contactor with AC Operating Coil
9A Inductive AC T-Range 3 Pole Contactor with AC Operating Coil
SKU:DPC-2a5448
High-performance 9A Inductive AC T-Range 3 Pole Contactor with AC Operating Coil, compliant with global standards and pre-wired for easy setup.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
9A Inductive AC T-Range 3 Pole Contactor with AC Operating Coil
$59.99
Quantity: 1
Claim Your Seller Account
9A Inductive AC T-Range 3 Pole Contactor with AC Operating Coil
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9A Maximum Inductive AC T-Range 3 Pole Contactor is a reliable solution for industrial and institutional applications. With a maximum resistive current of 25A, it offers robust performance. This contactor features auxiliary contacts, rated insulation voltage of 1000V, and complies with various international standards including IEC60947 and VDE0660. Approved by CSA and UL, it ensures high-quality and safety. The pre-wired AC operating coil simplifies installation, making it a versatile choice for a wide range of electrical systems.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Average Operating Time At Rated
4 to 12 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
15 cycles
Control Circuit Characteristics Operational Control Voltage For
0.8 to 1.1 Uc
Control Circuit Characteristics Rated Control Circuit Voltage Uc
12 to 660 V
Control Circuit Characteristics Rated Operational Voltage
0 to 660 V
Dimensions Depth D
80 mm
Dimensions Dimension C
80 mm
Dimensions Dimension D Lacdk1
133 mm
Dimensions Dimension D Ta1
113 mm
Dimensions Dimension D Ta2ta3
120 mm
Dimensions Dimension G
35 mm
Dimensions Height H
74 mm
Dimensions Minimum Electrical Clearance D
10 mm
Dimensions Width W
45 mm
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
5 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
7.5 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
0.2 W
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
250 A
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
85 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
175 A
Pole Characteristics Rated Insulation Voltage
1000 V
Pole Characteristics Rated Making Capacity Conforming To Interna
250 A
