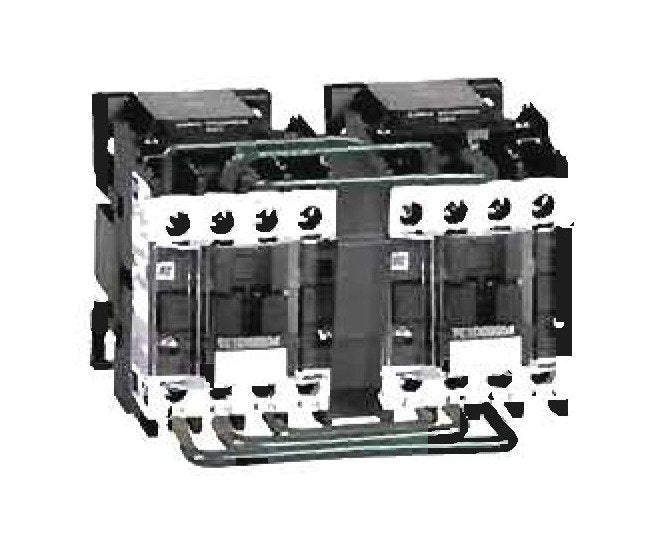

9A T-Range 3-Pole Mechanically Interlocked Contactor
9A T-Range 3-Pole Mechanically Interlocked Contactor
SKU:DPC-6efff1
Reliable 9A 3-Pole Contactor for AC applications in industrial settings. Meets IEC60947 and UL standards.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
9A T-Range 3-Pole Mechanically Interlocked Contactor
$199.99
Quantity: 1
Claim Your Seller Account
9A T-Range 3-Pole Mechanically Interlocked Contactor
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9 Ampere T-Range 3-Pole Mechanically Interlocked Contactor is designed for maximum efficiency in AC applications, with a power rating up to 7.5 hp. It features Normally Closed and Normally Open auxiliary contacts, rated insulation voltage of 1000 V, and meets standards like IEC60947 and UL approvals. This contactor is suitable for a wide range of industrial and institutional electrical systems, ensuring reliable performance and compliance with stringent industry regulations.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Average Operating Time At Rated
4 to 12 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
15 cycles
Control Circuit Characteristics Operational Control Voltage For
0.8 to 1.1 Uc
Control Circuit Characteristics Rated Control Circuit Voltage Uc
12 to 660 V
Control Circuit Characteristics Rated Operational Voltage
0 to 660 V
Dimensions Depth D
80 mm
Dimensions Dimension C
80 mm
Dimensions Dimension D Lacdk1
133 mm
Dimensions Dimension D Ta1
113 mm
Dimensions Dimension D Ta2ta3
120 mm
Dimensions Dimension G
35 mm
Dimensions Height H
74 mm
Dimensions Minimum Electrical Clearance D
10 mm
Dimensions Width W
45 mm
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
5 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
7.5 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
0.2 W
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
250 A
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
85 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
175 A
Pole Characteristics Rated Insulation Voltage
1000 V
Pole Characteristics Rated Making Capacity Conforming To Interna
250 A
