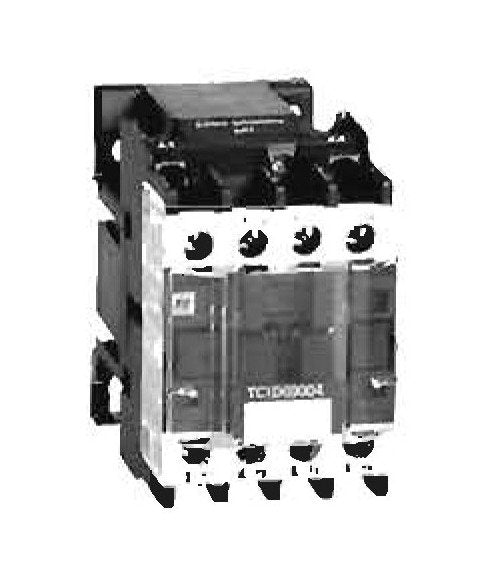

9A T-Range 4 Pole Contactor with AC Operating Coil
9A T-Range 4 Pole Contactor with AC Operating Coil
SKU:DPC-e942fd
Powerful 9A 4 Pole Contactor with AC Operating Coil, meets industry standards for safety and reliability.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
9A T-Range 4 Pole Contactor with AC Operating Coil
$69.99
Quantity: 1
Claim Your Seller Account
9A T-Range 4 Pole Contactor with AC Operating Coil
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9 Ampere T-Range 4 Pole Contactor is designed with an AC Operating Coil, making it ideal for a wide range of applications. With a maximum inductive AC of 9A and a variety of power ratings, this contactor ensures reliable performance. Meeting stringent industry standards including BSEN60947, IEC60947, and UL approvals, it guarantees high-quality and safe operation. With auxiliary contacts, rated insulation voltage of 1000V, and robust construction, this contactor is a top choice for both consumer and institutional buyers.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.3 V·A
Control Circuit Characteristics Average Operating Time At Rated
4 to 12 ms
Control Circuit Characteristics Mechanical Life Rated Control Ci
15 cycles
Control Circuit Characteristics Operational Control Voltage For
0.8 to 1.1 Uc
Control Circuit Characteristics Rated Control Circuit Voltage Uc
12 to 660 V
Dimensions Depth D
80 mm
Dimensions Dimension C
80 mm
Dimensions Dimension D Lacdk1
133 mm
Dimensions Dimension D Ta1
113 mm
Dimensions Dimension D Ta2ta3
120 mm
Dimensions Dimension G
35 mm
Dimensions Height H
74 mm
Dimensions Minimum Electrical Clearance D
10 mm
Dimensions Width W
45 mm
Integral Auxillary Contact Characteristics Rated Operational Vol
0 to 660 V
Pole Characteristics Maximum Power Rating At Single Phase 120 Vo
0.5 hp
Pole Characteristics Maximum Power Rating At Single Phase 230 Vo
1 hp
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
2 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
5 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
7.5 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
0.2 W
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
85 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
175 A
Pole Characteristics Rated Insulation Voltage
1000 V
