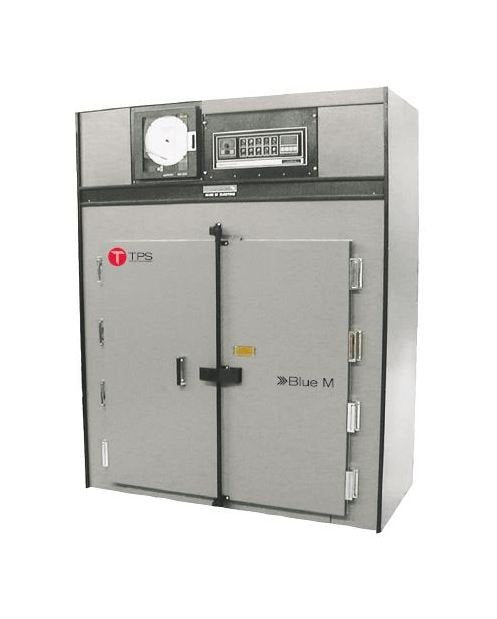

9F Vertical Air Flow Industrial Burn-In Oven
9F Vertical Air Flow Industrial Burn-In Oven
SKU:BLU-15a968
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
9F Vertical Air Flow Industrial Burn-In Oven
$49.99
Quantity: 1
Claim Your Seller Account
9F Vertical Air Flow Industrial Burn-In Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Blue M designs and builds trademark tough industrial burn-in ovens with uniform, reliable temperature control and numerous standard features. These industrial batch ovens are ideal for burn-in applications for electronic components, devices and assemblies.
Product Specifications
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Ambient Temperature
300 ºC | 572 ºF
Specifications Cool Down Time To 40c
30 m
Specifications Cool Down Time To 50c
40 m
Specifications Cool Down Time To 70c
30 m
Specifications Engineered Oven Options
N2 purge | Rear access door(s) | Redundant over-temperature protection | Welded and steel interior
Specifications Exterior Depth
38 in | 96.5 mm
Specifications Exterior Height
68 in | 172.7 mm
Specifications Exterior Width
58 in | 147.3 mm
Specifications Frequency
60 Hz
Specifications General Mechanical Convection Industrial Oven Spe
Temperature Range: 15°C above ambient to 343°C (650°F) | Control Accuracy: +0.5°C | Resolution: ± 0.1°C | Performance data (typical): Run-up to 300°C 60 min. (or less) | Uniformity: ± 2% of set point
Specifications Interior Depth
25 in | 63.5 mm
Specifications Interior Height
25 in | 63.5 mm
Specifications Interior Volume
9 ft³
Specifications Interior Width
25 in | 63.5 mm
Specifications Line Current Per Phase At 208 Volts V 1 Phase
26 A
Specifications Line Current Per Phase At 208 Volts V 3 Phase
26 A
Specifications Line Current Per Phase At 240 Volts V 1 Phase
29 A
Specifications Line Current Per Phase At 240 Volts V 3 Phase
29 A
Specifications Line Current Per Phase At 480 Volts V 3 Phase
15 A
Specifications Live Load
1500 W | 3000 W | 5000 W
Specifications Machine Footprint
15.3 ft²
Specifications Oven Features
Baked-on powder-coated enamel finish | Heavy-gauge steel exterior and stainless steel interior, all exterior panels are at least 16 gauge | All welded and sealed construction assures trace oxygen levels and eliminates gas migration into insulation | 4 Inch (in) fiberglass insulation | Silicone door seal design for positive sealing of door | Clean side walls for unobstructed side-by-side installation
Specifications Oven Type
Vertical Air Flow
Specifications Rated Power At 208 Volts V 1 Phase
7.5 kW
Specifications Rated Power At 208 Volts V 3 Phase
7.5 kW
Specifications Rated Power At 240 Volts V 1 Phase
10 kW
Specifications Rated Power At 240 Volts V 3 Phase
10 kW
Specifications Rated Power At 480 Volts V 3 Phase
10 kW
Specifications Run Up Time To 125c 257f
5.5 m | 6 m | 8 m
Specifications Standard Batch Oven Options
10 Inch (in) circular chart recorder | Floorstand for BI-9 and BI-9V models | Lead-in ports
Specifications Temperature
15 ºC
