9HX Series Fluoropolymer Heaters
9HX Series Fluoropolymer Heaters
SKU:HEA-57f573
Efficient 9HX Series Fluoropolymer (PTFE) Heaters for reliable industrial heating with superior safety features and high-performance standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
9HX Series Fluoropolymer Heaters
$799.99
Quantity: 1
Claim Your Seller Account
9HX Series Fluoropolymer Heaters
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

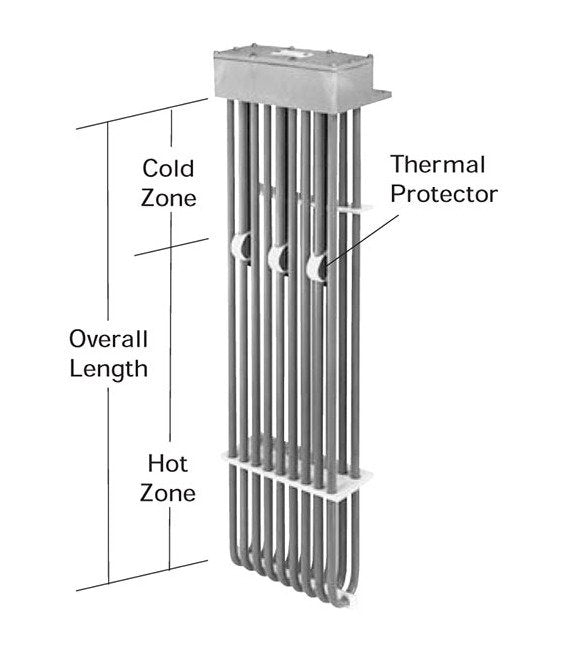

The 9HX Series Fluoropolymer (PTFE) Heaters are designed for efficient and reliable heating applications. With 9 elements and a wattage of 4500W, these heaters ensure uniform heat distribution with a watt density of 10 W/in². Featuring options for thermal overload protection up to 250°F, these heaters prioritize safety and longevity. Manufactured by Process Technology, these heaters are CE, CSA, and UL Listed, meeting high industry standards. The Fluoropolymer (PTFE) guards offered provide added durability, especially for solutions exceeding 180°F. With a hot zone of 15" and an overall length of 23", these heaters are ideal for various industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX23G
Specifications Hot Zone
15 " | 381 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
33.0 Pound
Specifications Volts
480 V
Specifications Watts
4500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
33.0 lbs | 15.0 kg
