The 9HX Series Fluoropolymer (PTFE) Heaters are expertly designed for exceptional performance in demanding industrial settings. With 9 elements delivering 15000W of power and precise thermal control options including thermal overload protection, these heaters ensure efficient heating in corrosive environments. Process Technology guarantees reliability with CE, CSA, and UL Listed certifications, meeting the highest industry standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX59G

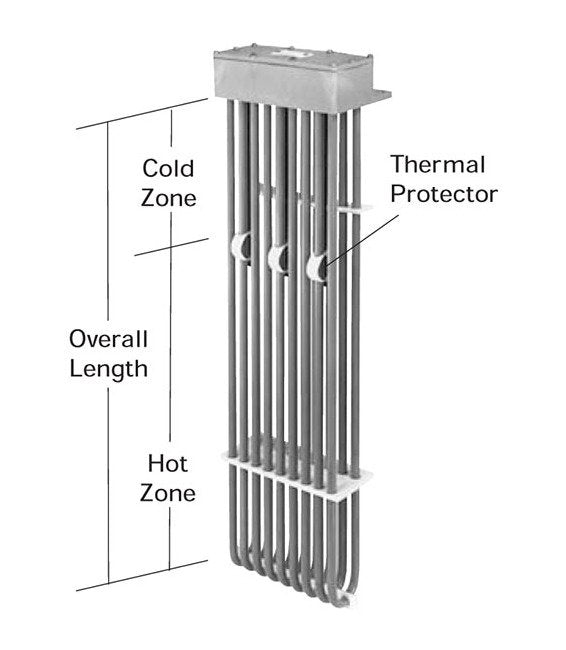

Specifications Hot Zone
47 " | 1194 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
60.0 Pound
Specifications Volts
240 V
Specifications Watts
15000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
60.0 lbs | 27.2 kg
