9HX Series Fluoropolymer (PTFE) Electric Immersion Heaters
9HX Series Fluoropolymer (PTFE) Electric Immersion Heaters
SKU:HEA-2de9b9
9HX Series Fluoropolymer (PTFE) Electric Immersion Heaters with 9 elements, 9000W power, thermal protector, and PTFE guards for industrial heating applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
9HX Series Fluoropolymer (PTFE) Electric Immersion Heaters
$799.99
Quantity: 1
Claim Your Seller Account
9HX Series Fluoropolymer (PTFE) Electric Immersion Heaters
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

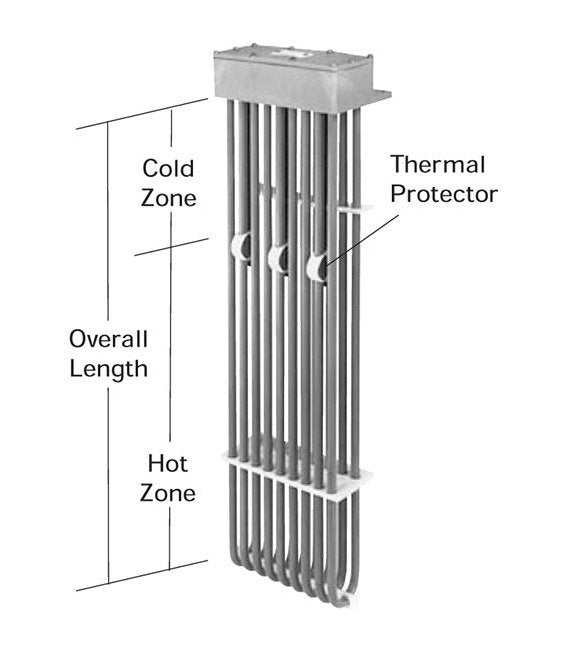

The 9HX Series Fluoropolymer (PTFE) Electric Immersion Heaters are designed for industrial applications requiring reliable and efficient heating. With 9 elements and a power output of 9000W at 480V, these heaters offer precise temperature control. Featuring a replaceable thermal protector for solutions up to 250°F, they ensure safe operation. Recommended for corrosive environments, the option for Fluoropolymer (PTFE) guards enhances durability and performance. Certified by CE, CSA, and UL, these heaters meet stringent quality and safety standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX35G
Specifications Hot Zone
28 " | 711 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
40.0 Pound
Specifications Volts
480 V
Specifications Watts
9000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
40.0 lbs | 18.1 kg
