9HX Series Fluoropolymer (PTFE) Heaters
9HX Series Fluoropolymer (PTFE) Heaters
SKU:HEA-ea1046
Efficient 9-element 3000W 240V heaters with replaceable thermal protector & CE, CSA, UL certifications for industrial use.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
9HX Series Fluoropolymer (PTFE) Heaters
$349.99
Quantity: 1
Claim Your Seller Account
9HX Series Fluoropolymer (PTFE) Heaters
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9HX Series Fluoropolymer (PTFE) Heaters are designed for efficient heating in industrial processes. With 9 elements providing 3000W at 240V, these heaters offer reliable performance. Featuring a replaceable thermal protector and options for different solution temperatures, they ensure safety and versatility. Recommended guards enhance durability for corrosive solutions, meeting CE, CSA, and UL Listed certifications. Manufactured by Process Technology, these heaters are ideal for commercial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX17G

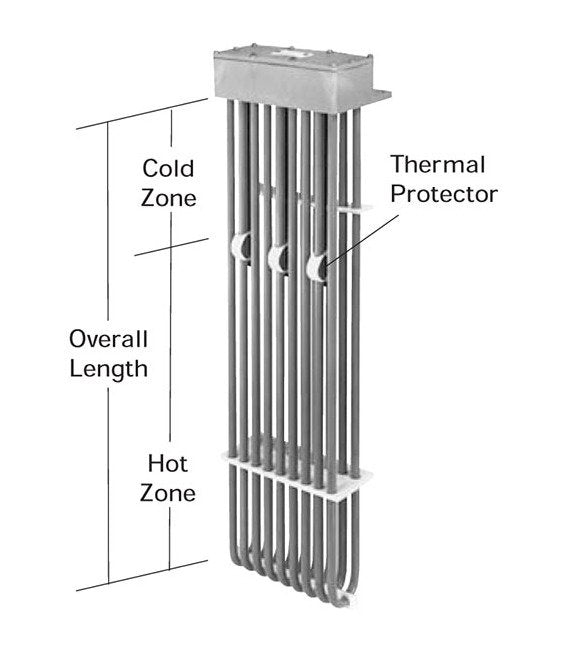

Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
28 Pound
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
28.0 lbs | 12.7 kg
