9HX Series Fluoropolymer (PTFE) Heaters - 9 Element
9HX Series Fluoropolymer (PTFE) Heaters - 9 Element
SKU:HEA-b64ed6
High-performance 9 Element Fluoropolymer (PTFE) Heaters for industrial applications. 12,000W power, 480V, thermal protection up to 250°F. CE, CSA, UL Listed.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
9HX Series Fluoropolymer (PTFE) Heaters - 9 Element
$699.99
Quantity: 1
Claim Your Seller Account
9HX Series Fluoropolymer (PTFE) Heaters - 9 Element
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9HX Series 9 Element Fluoropolymer (PTFE) Heaters are designed for robust performance in industrial applications. With 12,000W power and 480V, these heaters offer efficient heating with a Watt Density of 10 W/in². They come with thermal overload protection options for solutions up to 250°F, ensuring safety and reliability. Manufactured by Process Technology, these heaters meet CE, CSA, and UL Listed certifications, making them ideal for various industries requiring high-quality electric immersion heaters.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX47G

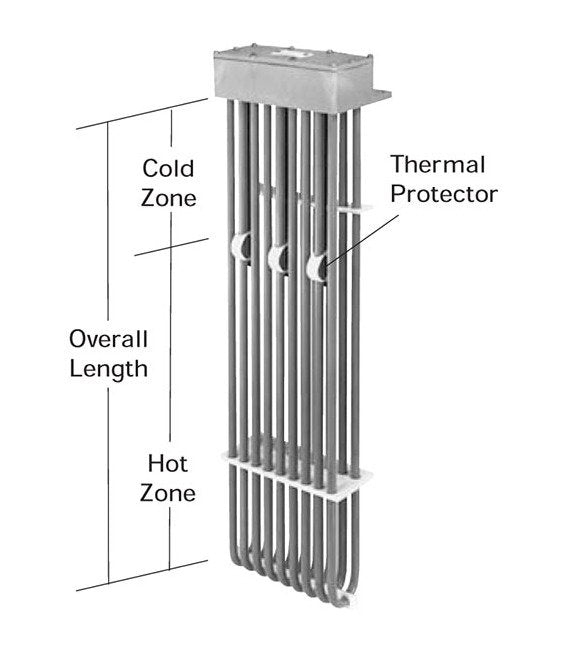

Specifications Hot Zone
38 " | 965 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
49.0 Pound
Specifications Volts
480 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
49.0 lbs | 22.2 kg
