9HX Series Fluoropolymer (PTFE) Heaters - 9 Elements
9HX Series Fluoropolymer (PTFE) Heaters - 9 Elements
SKU:HEA-717bbb
Efficient 9-element Fluoropolymer (PTFE) Heaters for industrial applications. 3000W, 10 W/in², 480V. CE, CSA, UL Listed.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
9HX Series Fluoropolymer (PTFE) Heaters - 9 Elements
$399.99
Quantity: 1
Claim Your Seller Account
9HX Series Fluoropolymer (PTFE) Heaters - 9 Elements
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9HX Series Fluoropolymer (PTFE) Heaters feature 9 elements designed for efficient heat transfer in industrial applications. With a power rating of 3000W and a watt density of 10 W/in², these heaters operate at 480V and are available in single or three-phase options. Equipped with a replaceable thermal protector for solutions up to 250°F and optional PTFE guards for higher temperature applications, these heaters ensure safe and reliable heating. Manufactured by Process Technology, a trusted name in industrial heating solutions, these heaters are CE, CSA, and UL Listed for quality assurance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX17G

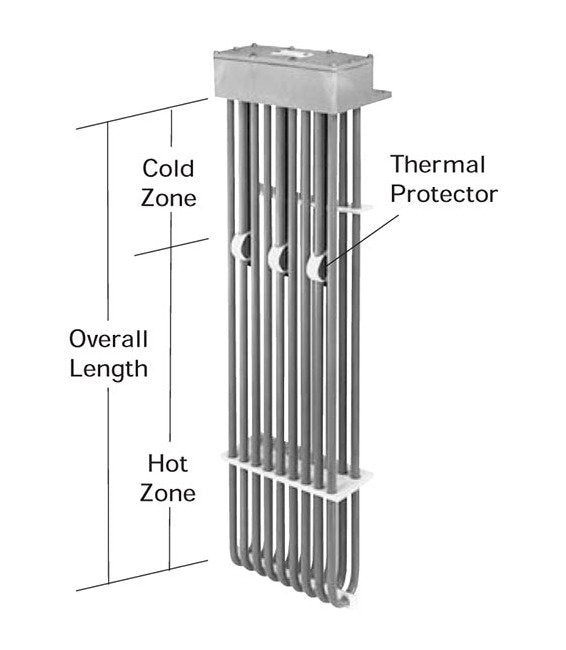

Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
28 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
28.0 lbs | 12.7 kg
