9HX Series Fluoropolymer (PTFE) Immersion Heaters
9HX Series Fluoropolymer (PTFE) Immersion Heaters
SKU:HEA-addfef
Efficient 4500W 9HX Series Fluoropolymer (PTFE) Immersion Heaters with replaceable thermal protector for safe heating in industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
9HX Series Fluoropolymer (PTFE) Immersion Heaters
$499.99
Quantity: 1
Claim Your Seller Account
9HX Series Fluoropolymer (PTFE) Immersion Heaters
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience efficient heating with the 9HX Series Fluoropolymer (PTFE) Immersion Heaters. With 9 elements and a wattage of 4500W, these heaters are designed for industrial applications. The replaceable thermal protector ensures safety for solutions up to 250°F. Built with CE, CSA, and UL certifications, these heaters meet stringent quality standards. The option to add Fluoropolymer (PTFE) guards enhances compatibility with corrosive chemicals, making them ideal for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX23G

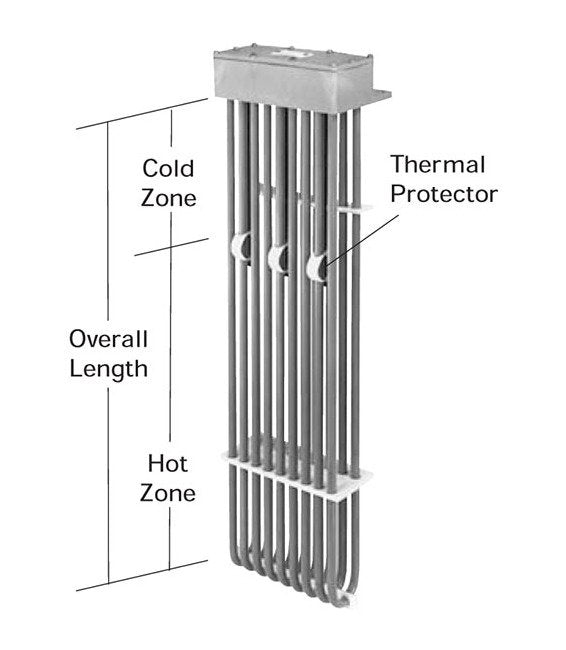

Specifications Hot Zone
15 " | 381 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
33.0 Pound
Specifications Volts
240 V
Specifications Watts
4500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
33.0 lbs | 15.0 kg
