9HX Series PTFE Heaters - 9 Element, 18,000W, 480V
9HX Series PTFE Heaters - 9 Element, 18,000W, 480V
SKU:HEA-6c7d39
Efficient 9 Element Fluoropolymer (PTFE) Heaters with 18kW, 480V, and thermal protection options for industrial use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
9HX Series PTFE Heaters - 9 Element, 18,000W, 480V
$899.99
Quantity: 1
Claim Your Seller Account
9HX Series PTFE Heaters - 9 Element, 18,000W, 480V
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9HX Series 9 Element Fluoropolymer (PTFE) Heaters are expertly designed for industrial applications, offering a robust solution for precise heating needs. With a power output of 18,000 Watts and 480 Volts, these heaters ensure efficient heat transfer with a Watt Density of 10 W/in². Equipped with a replaceable thermal protector and various safety options, including guards for different chemical solutions, these heaters prioritize user safety and equipment longevity. Certified by CE, CSA, and UL, these heaters meet stringent quality standards, making them a reliable choice for both consumer and institutional buyers.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX68G

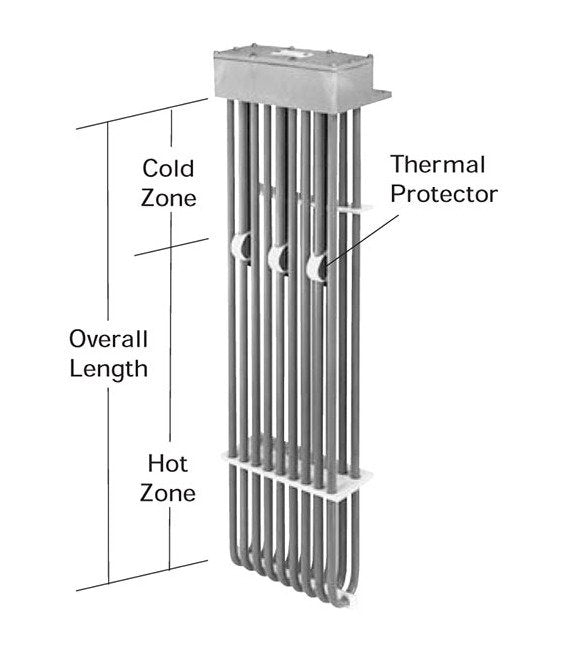

Specifications Hot Zone
55 " | 1397 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
68 " | 1727 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
67.0 Pound
Specifications Volts
480 V
Specifications Watts
18,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
67.0 lbs | 30.4 kg
