9HX Series PTFE Heaters - 9 Element Advanced Heating System
9HX Series PTFE Heaters - 9 Element Advanced Heating System
SKU:HEA-6b4b2d
Powerful 9 Element 6000W PTFE Heaters with thermal protection options for industrial use. CE, CSA, and UL Listed.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
9HX Series PTFE Heaters - 9 Element Advanced Heating System
$699.99
Quantity: 1
Claim Your Seller Account
9HX Series PTFE Heaters - 9 Element Advanced Heating System
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior heating performance with our 9HX Series 9 Element Fluoropolymer (PTFE) Heaters. Designed for industrial applications, these heaters offer 6000W power, 240V voltage, and high thermal efficiency. Featuring thermal overload protection options, including resettable protectors for various temperature ranges, these heaters prioritize safety and longevity. Manufactured by Process Technology, a trusted name in heating technology, these PTFE heaters are CE, CSA, and UL Listed for quality assurance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX29G

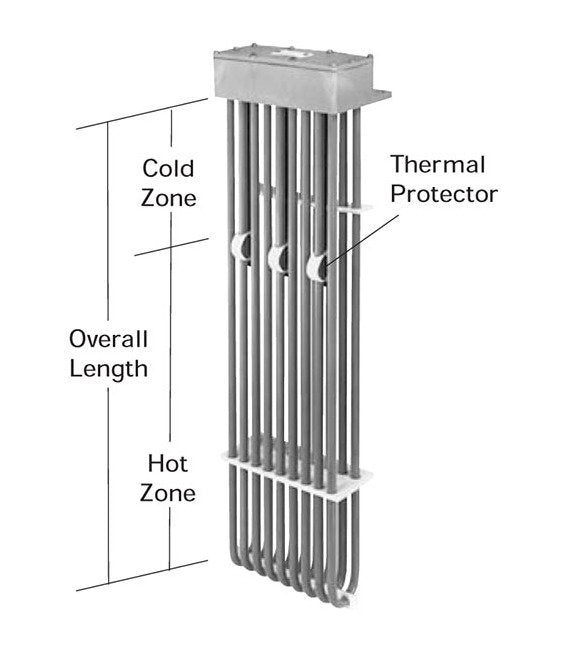

Specifications Hot Zone
21 " | 533 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
36.0 Pound
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
36.0 lbs | 16.3 kg
