9HX Series PTFE Heaters - 9 Element Electric Immersion Heater
9HX Series PTFE Heaters - 9 Element Electric Immersion Heater
SKU:HEA-468a12
Efficient 9 Element PTFE Heater with 12,000W power, ideal for industrial use. CE, CSA, UL Listed certified for safety.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
9HX Series PTFE Heaters - 9 Element Electric Immersion Heater
$699.99
Quantity: 1
Claim Your Seller Account
9HX Series PTFE Heaters - 9 Element Electric Immersion Heater
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9HX Series 9 Element Fluoropolymer (PTFE) Heaters offer precise heating with 12,000W power, ideal for industrial applications. Featuring a hot zone of 38" and thermal overload protection options, these heaters ensure efficient operation. With compliance to CE, CSA, and UL Listed certifications, they meet stringent industry standards for safety and performance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX47G

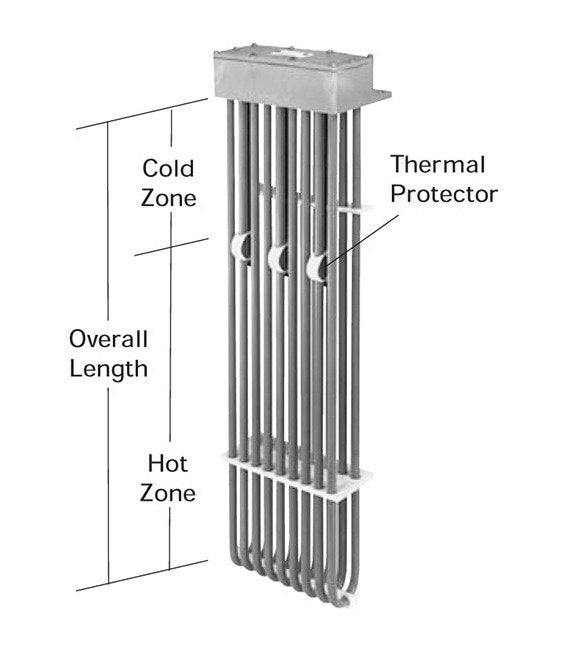

Specifications Hot Zone
38 " | 965 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
49.0 Pound
Specifications Volts
240 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
49.0 lbs | 22.2 kg
