9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
SKU:HEA-bb6c98
Efficient 9 Element PTFE Heaters with 15000W power, multiple thermal protection options, and CE, CSA, UL Listed certifications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
$899.99
Quantity: 1
Claim Your Seller Account
9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9HX Series 9 Element Fluoropolymer (PTFE) Heaters are designed for efficient and precise heating in industrial applications. With a power output of 15000W and 9 elements, these heaters offer excellent performance. They come with a variety of thermal protection options, including replaceable and resettable thermal protectors to suit different solution temperatures. Manufactured by Process Technology, these heaters meet CE, CSA, and UL Listed certifications, ensuring quality and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX59G

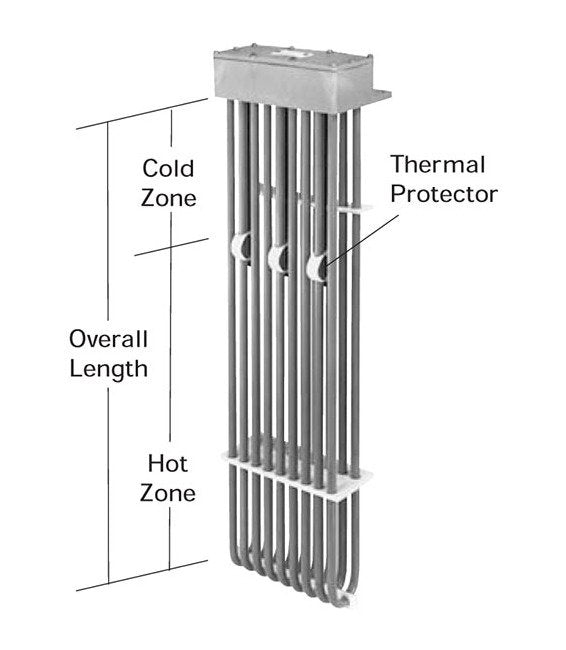

Specifications Hot Zone
47 " | 1194 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
60.0 Pound
Specifications Volts
480 V
Specifications Watts
15000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
60.0 lbs | 27.2 kg
