9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
SKU:HEA-f27655
9HX Series 9 Element Fluoropolymer (PTFE) Heaters - High-performance, reliable immersion heaters for industrial use. CE, CSA, UL Listed.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
$549.99
Quantity: 1
Claim Your Seller Account
9HX Series PTFE Heaters - 9 Element Fluoropolymer Immersion Heater
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 9HX Series 9 Element Fluoropolymer (PTFE) Heaters are designed for industrial applications requiring precise temperature control and chemical resistance. With a power of 9000 W and volt rating of 240V, these heaters offer efficient heat transfer with a watt density of 10 W/in². They come with a replaceable thermal protector and optional resettable thermal protectors for solutions up to 250°F, ensuring safe and reliable operation. Recommended for chromic acid and solutions exceeding 180°F, these heaters meet CE, CSA, and UL certifications, making them ideal for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX35G

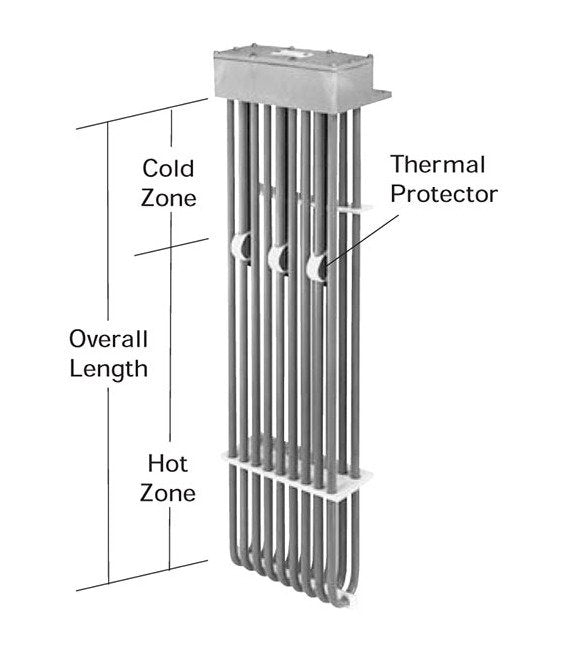

Specifications Hot Zone
28 " | 711 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
40.0 Pound
Specifications Volts
240 V
Specifications Watts
9000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
40.0 lbs | 18.1 kg
