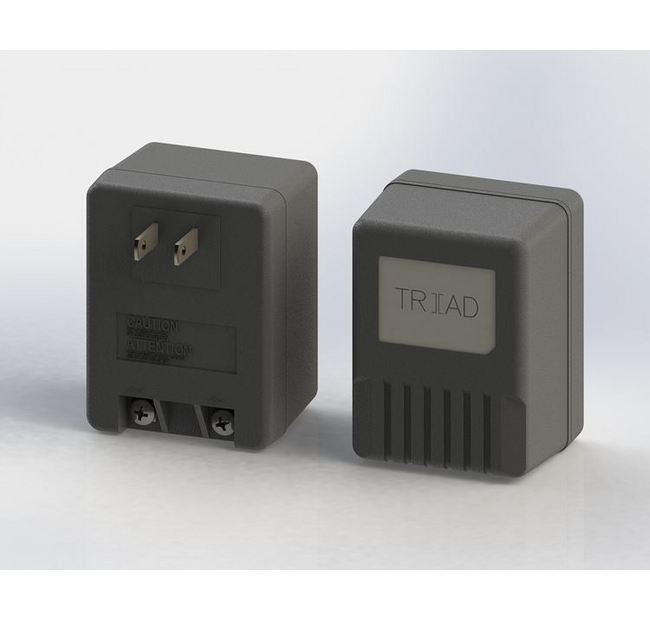

9VAC Wall Plug-In Power Supply, 1200mA, cULus Level VI with Screw Terminals
9VAC Wall Plug-In Power Supply, 1200mA, cULus Level VI with Screw Terminals
SKU:WAL-04c4cb
Enhance your setups with our efficient 9VAC Wall Plug-In Power Supply, meeting Level VI standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
9VAC Wall Plug-In Power Supply, 1200mA, cULus Level VI with Screw Terminals
$29.99
Quantity: 1
Claim Your Seller Account
9VAC Wall Plug-In Power Supply, 1200mA, cULus Level VI with Screw Terminals
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

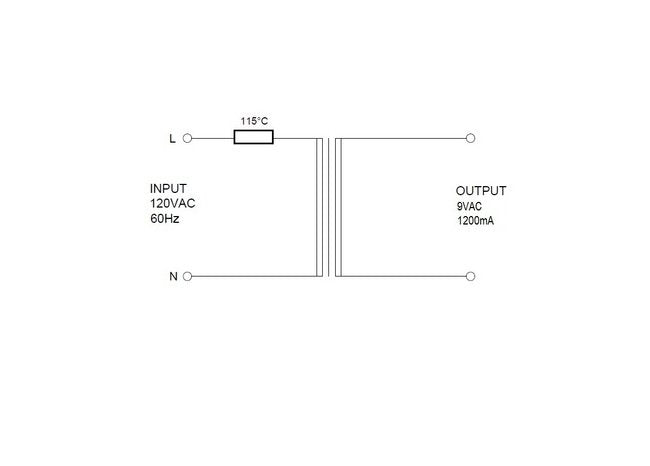

Upgrade your power supply with our 9VAC Wall Plug-In Power Supply designed for efficiency and reliability. With a primary input voltage of 120VAC, operating temperature range of -10 to +40°C, and a safety rating of Class 2, this power supply ensures consistent performance. Measuring 79.6mm in height, 59.7mm in width, and 48.1mm in depth, it fits seamlessly in various applications. This power supply meets Level VI efficiency standards for minimal power consumption and is designed with thermoplastic molded enclosure for enhanced durability.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.38 %

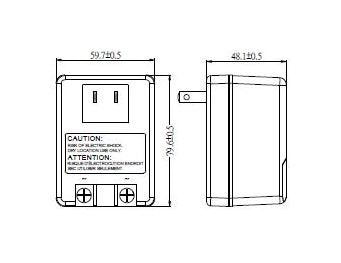

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
9.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 11.6 V
Specifications Secondary Output Current Ac
1200 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
9 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
