9VAC Wall Plug-In Power Supply, Level VI Compliant, 1200mA Output
9VAC Wall Plug-In Power Supply, Level VI Compliant, 1200mA Output
SKU:WAL-7213ab
Reliable 9VAC power supply with 1200mA output, UL certified, Level VI compliant for energy efficiency
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
9VAC Wall Plug-In Power Supply, Level VI Compliant, 1200mA Output
$24.99
Quantity: 1
Claim Your Seller Account
9VAC Wall Plug-In Power Supply, Level VI Compliant, 1200mA Output
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

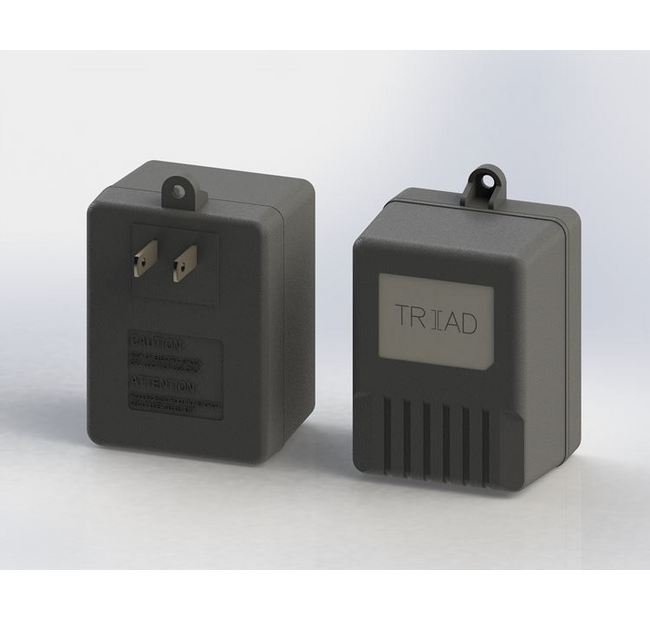

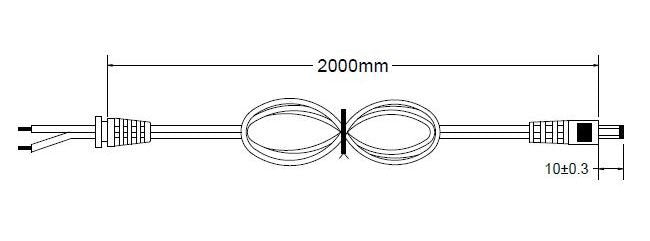

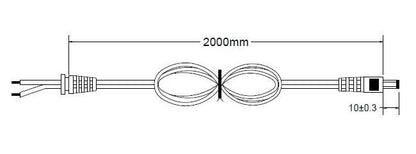

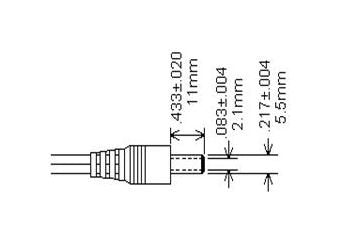

The 9VAC Wall Plug-In Power Supply is a reliable and efficient external power source suitable for various applications. With a power output of 1200mA and UL certification, this power supply ensures safe and consistent performance. Its compact design features a 2-meter cord, a 5.5x2.1mm connector, and a convenient mounting tab for easy installation. Operating within an efficiency level VI rating, this power supply guarantees energy savings while meeting high-quality standards.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
22 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.38 %

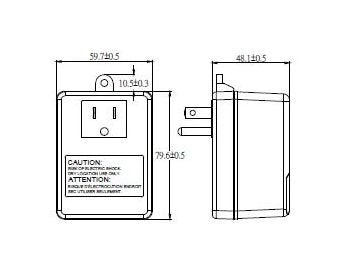

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
9.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 11.6 V
Specifications Secondary Output Current Ac
1200 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
9 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
