9VAC Wall Plug-In Power Supply with Molex Ground, UL Level VI, 1200mA
9VAC Wall Plug-In Power Supply with Molex Ground, UL Level VI, 1200mA
SKU:WAL-43fac7
Reliable 9VAC Power Supply, UL Level VI, Efficient & Safe, Ideal for Various Applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
9VAC Wall Plug-In Power Supply with Molex Ground, UL Level VI, 1200mA
$29.99
Quantity: 1
Claim Your Seller Account
9VAC Wall Plug-In Power Supply with Molex Ground, UL Level VI, 1200mA
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

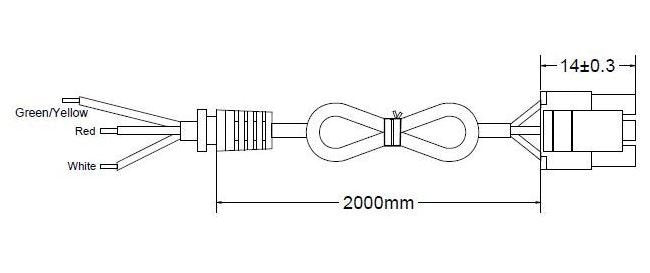

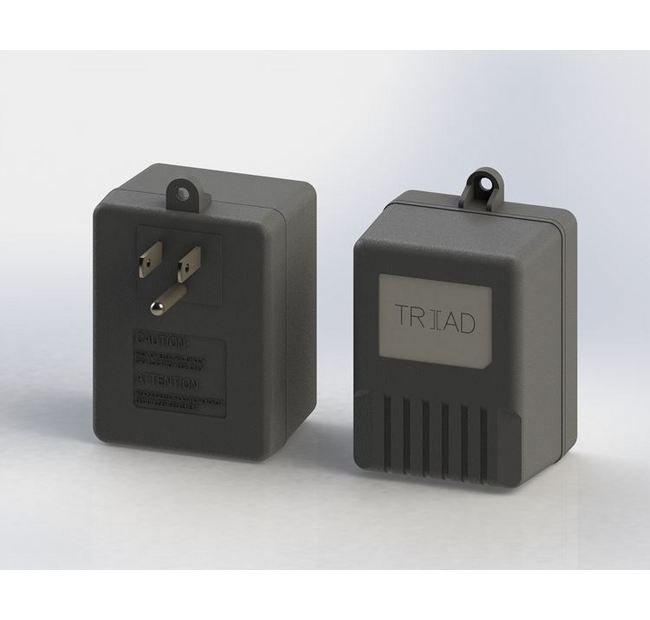

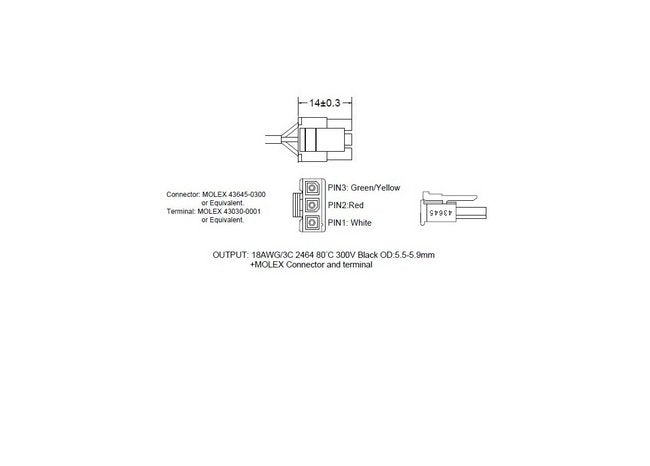

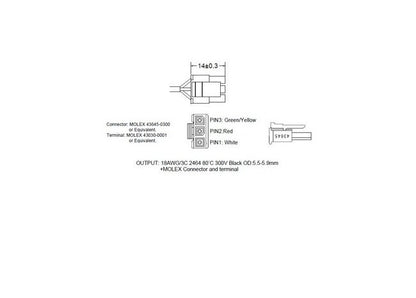

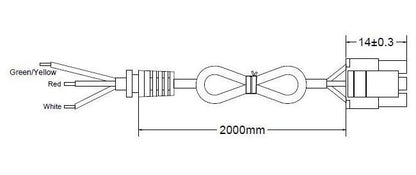

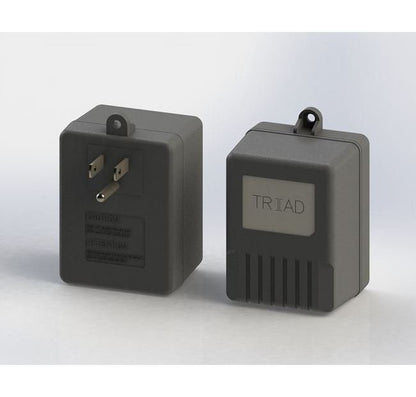

The 9VAC Wall Plug-In Power Supply is a reliable and efficient solution for both consumer and institutional needs. With a primary input voltage of 120VAC and a secondary output voltage of 9VAC at 1200mA, this power supply ensures steady performance. It meets UL Level VI efficiency standards, maintaining an average efficiency of 82.38%. The compact design features a 2-meter cord, 3 terminal Molex with pass-through ground, and a convenient mounting tab. Ideal for external power sources, this Class 2 UL-rated supply is perfect for various applications while ensuring safety and reliability.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
22 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.38 %

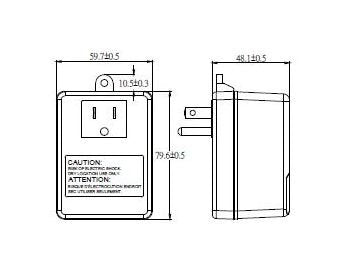

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
9.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 11.6 V
Specifications Secondary Output Current Ac
1200 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
9 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
